Features:

1. LGT8F328P MCU used by the LGT8F328P, is a Atmel MEGA328P compatible chip.
2. LGT8F328D architecture design is relatively new, peripheral functions far stronger than Atmel MEGA328. Especially the program encryption ability is far more than MEGA328.
3. LGT8F328D can use 3V3 and 5V power supply running at 16M frequency, excellent level compatibility.
4. Built-in high-precision RC, no external crystal can be stable operation.
5. Less And decreases in peripheral instrument parts, Circuit Design Is Simple.
6. 12-bit ADC (analog-to-digital conversion)
7. On Board DAC
8. Owned Inventory the GUID (Unique own ID) Can Be For on used chip solutions Encryption Program.
9. A Built-In .internal 1.024V / 2.048V / 4.096V ± 1% Calibratable Source Reference voltage software.
10. The PWM pin adapter Number: D3, D5, D6, D9, D10, D11.
11. MCU LGT8F328P
12. FLASH 32Kbytes
13. SRAM 2Kbytes
14. E2PROM 0K / 1K / 2K / 4K / 8K (FLASH Share)
15. PWM 8
16. Frequency 16MHz (Maximum 32MHz)
17. ADC 6 passageway12 position
18. DAC 1passageway8 position
19. UART 1
20. SPI YES
21. TWI (I2C) YES
22. GUID YES
23. Internal benchmark 1.024V / 2.048V / 4.096V ± 0.5%
24. System logic level Factory 3V3 (switch from pad to 5V)

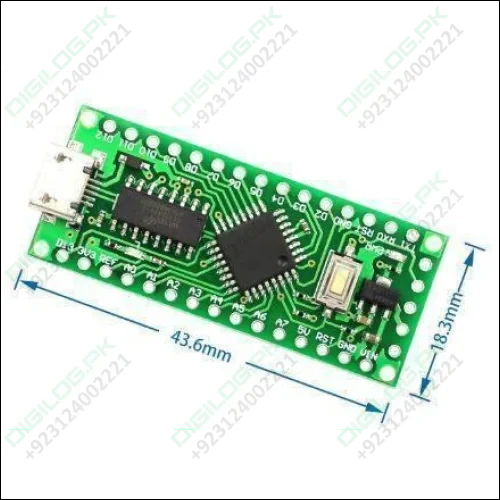

Now we're going to look at the 32MHz Nano-sized drop-in replacement

Buy LGT8F328P-LQFP32 MiniEVB Alternative Arduino Nano V3.0 ATMEGA328P at pakistan's Best Online Shopping store in cheap price.Here you get best LGT8F328P-LQFP32 MiniEVB which replace Replace ATMega328P. We Deliver in Gujranwala, Karachi, Lahore, Islamabad, Rawalpindi, Multan, Quetta , Faisalabad and all over Pakistan.

Package Included:

• 1xLGT8F328P-LQFP32 MiniEVB Alternative Arduino Nano V3.0 ATMEGA328P
