A battery management system (BMS) is an electronic regulator that monitors and controls the charging and discharging of rechargeable batteries. Battery BMS protection boards are the brains behind battery packs. 8A 2S BMS manages the output, charging and discharging and also provides critical safeguards to protect the batteries from damage. 18650 protection circuit Board is a high-accuracy voltage detection circuit.

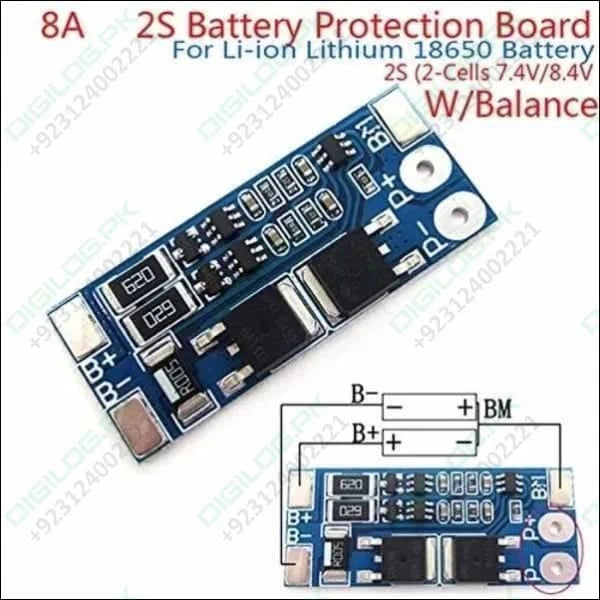

Features Of 2S 8A BMS Protection Circuit Board For 18650 Lithium Battery:

• A high-accuracy voltage detection circuit
• 2 series 7.4V lithium battery
• A terminal of the charger using a high voltage device
• Built-in three-stage over-current detection circuit (over-current 1, over-current 2, or load short circuit)
• MOS transistor can control the battery charge and discharge
• low standby current consumption.

Specifications Of 7.4 v BMS 2s Lithium-ion Battery protection circuit Board:

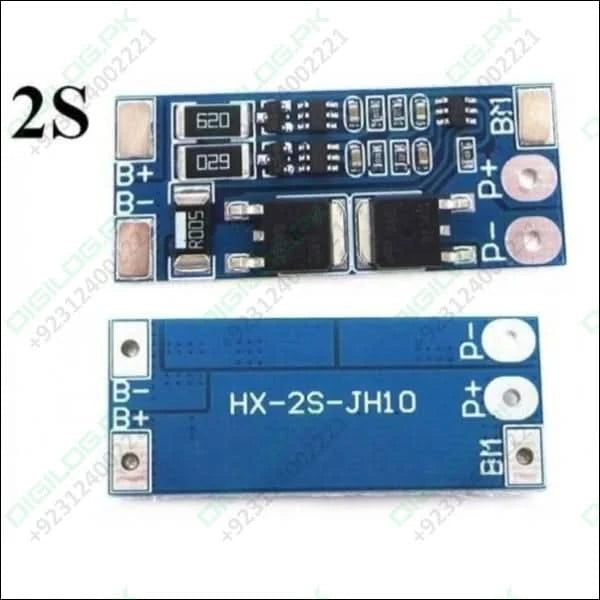

1. Model: HX-2S-JH10
2. Size: 40*17*3.5mm
3. Over-discharge voltage range: 2.5-3.0v±0.05v
4. Overcharge voltage range: 4.25-4.35v±0.05v
5. Upper limit working current: 8A
6. Upper limit instantaneous current: 10A
7. Working temperature: -40--- 50 ° C
8. Storage conditions: -40-- 80 ° C
9. Quiescent current: less than 10uA
10. Effective life: more than 50,000 hours
11. Internal resistance: less than 300mΩ
12. Charging voltage: 8.4V-9V
13. Short circuit protection: protection, disconnect load delay self-recovery Sold join

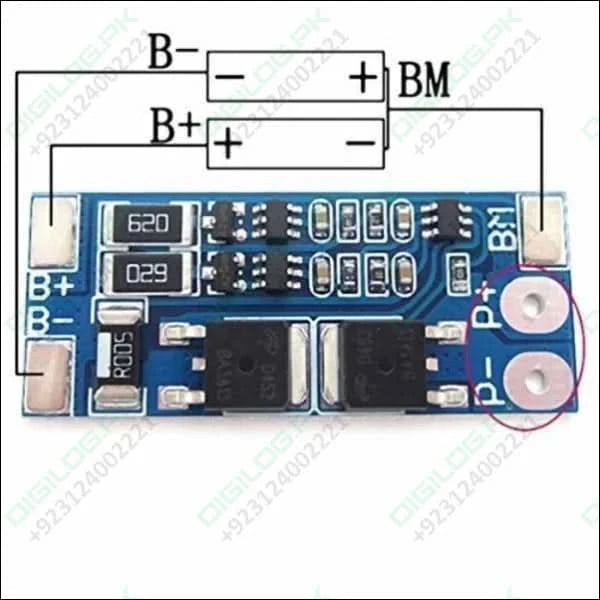

Description of welding points:

• B +: connected to the battery positive;
• B-: connected to the battery negative;
• MB: Connect the connection point between battery 1 and battery 2;
• P +: charge / discharge positive (charge / discharge common);
• P-: charge / discharge negative (charge / discharge common).

Package Include:

• 1x Battery Protection Board 2S 8A BMS For 18650 Lithium-Ion Cells HX-2S-JH10
