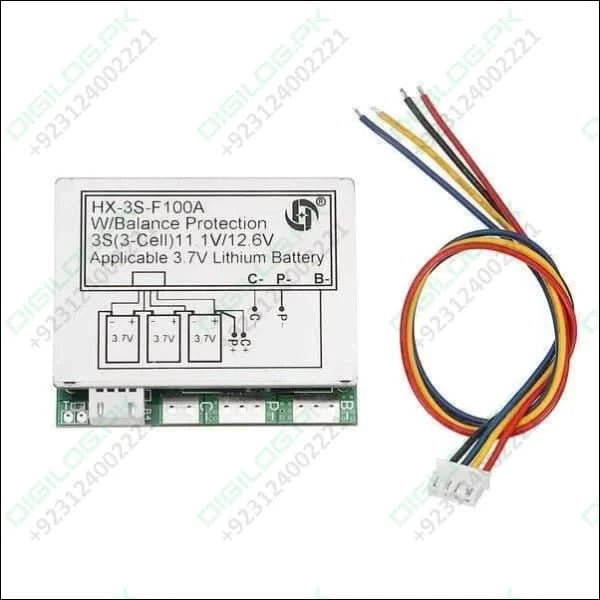

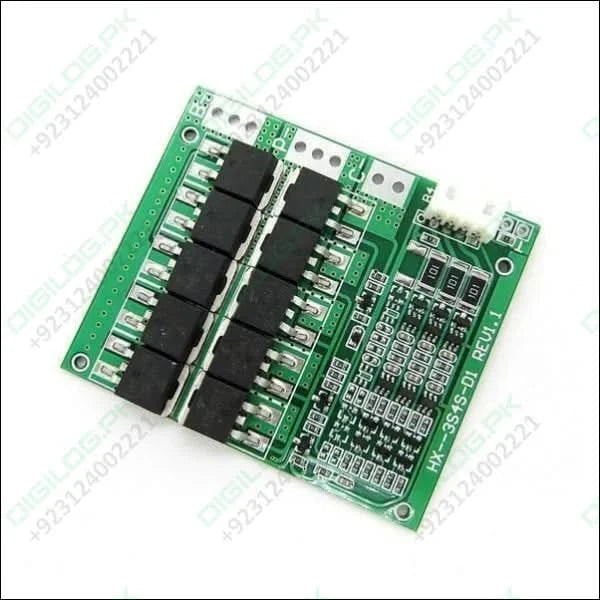

This HX-3S-F100A based 100A BMS board is also called (a battery management system ). HX-3S-F100A is a protection board for li-ion 18650 cells. There are 10 MOSFET'S, a strong heat-dissipating aluminum sheet installed on it, and the continuous current limit is 100A. It is suitable for 3 series lithium battery packs such as inverter, xenon lamp, and solar street lamp.

Features of HX-3S-F100A:

• Overcharge voltage range: 4.28v±0.05v/ per cell
• Size: 70*60*8.5mm
• Over-discharge voltage range: 2.5 ±0.05v
• Upper limit working current: 100A (pay attention to heat dissipation)
• Working temperature: -40~+50°C
• Upper limit instantaneous current: 100-120A
• Storage condition: -40~+80°C
• Quiescent current: less than 30uA
• Effective life: more than 30,000 hours
• Internal resistance: less than 300mΩ
• Short circuit protection: protection, delay self-recovery.
• Equilibrium current: 65 mA
• Charging voltage: 12.6V-13V
• Charging current upper limit: 10A

Package Includes:

• 1 x 3S 11.1V High Current 100A 3.7V Lithium Battery Protection Board With Balance
