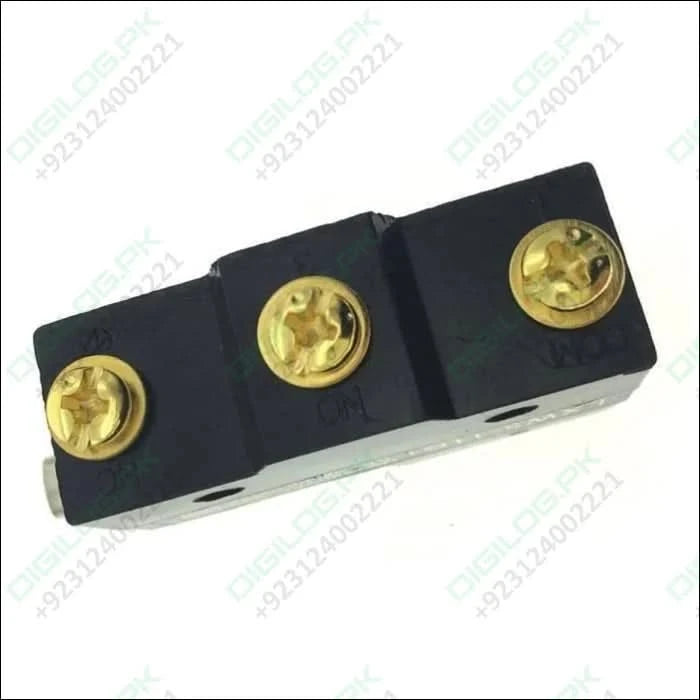

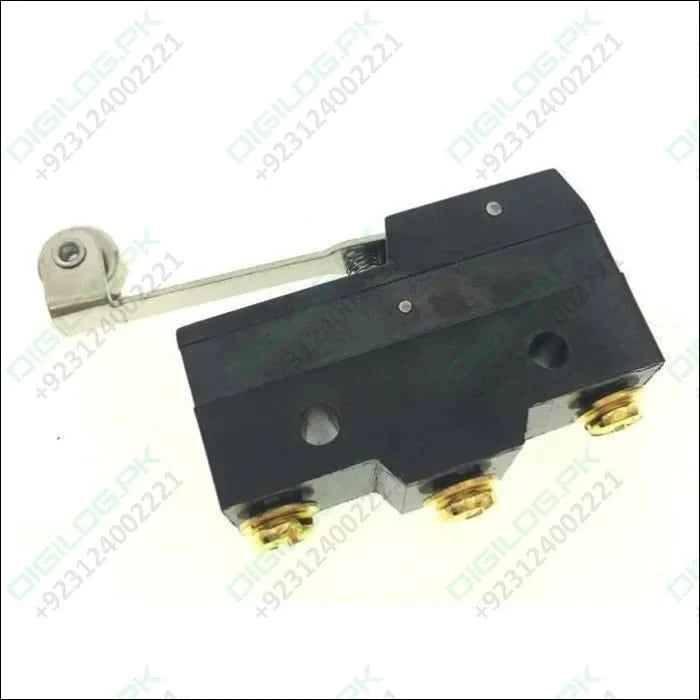

The 380VAC 220VDC 10A Micro Limit Switch Limitswitch is a reliable and efficient solution for monitoring the position of moving parts in various mechanical applications. With its robust construction and accurate sensing capabilities, this limit switch ensures precise control and safety in industrial machinery and equipment.

Key Features:

• Versatile Applications: Widely used in industrial control systems, toys, electronics, and communication devices.
• High Precision: Ensures accurate position detection and reliable operation.
• Durable Construction: Built to withstand harsh environments and provide long-lasting performance.
• Easy Installation: Simple to integrate into existing systems.
• Cost-Effective: Offers excellent value for its performance and features.

Specifications:

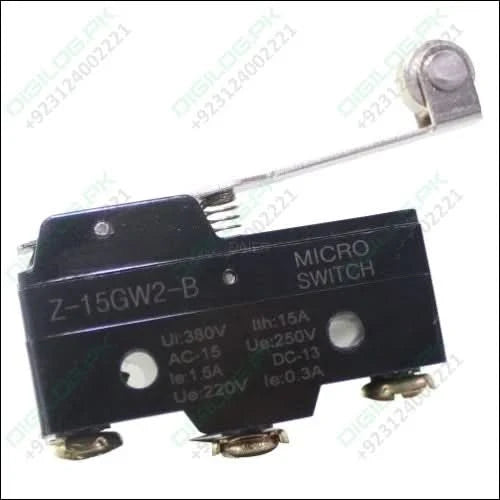

• Model Number: Z-15GW2-B
• Contact Material: Copper; Silver
• Contact Form: 1NO+1NC
• Action Method: Reset
• Rated Voltage: 380VAC, 220VDC
• Rated Thermal Current: 10A
• Contact Resistance: 30Ω max
• Insulation Resistance: 100MΩ min
• Dielectric Strength: 1000Vac, 2000Vac
• Machine Life: 20x106 operations min
• Electrical Life: 5x105 operations min
• IP Rating: IP62
• Operating Temperature: -25-80 ℃
• Operating Humidity: 35-85% RH

Order Now and Experience the Benefits of Precise Position Control

Shop online for the 380VAC 220VDC 10A Micro Limit Switch Limitswitch at the best prices in Pakistan. Available in Lahore, Islamabad, Karachi, Faisalabad, Multan, Quetta, Sukkur, Peshawar, Rawalpindi, and nationwide.
