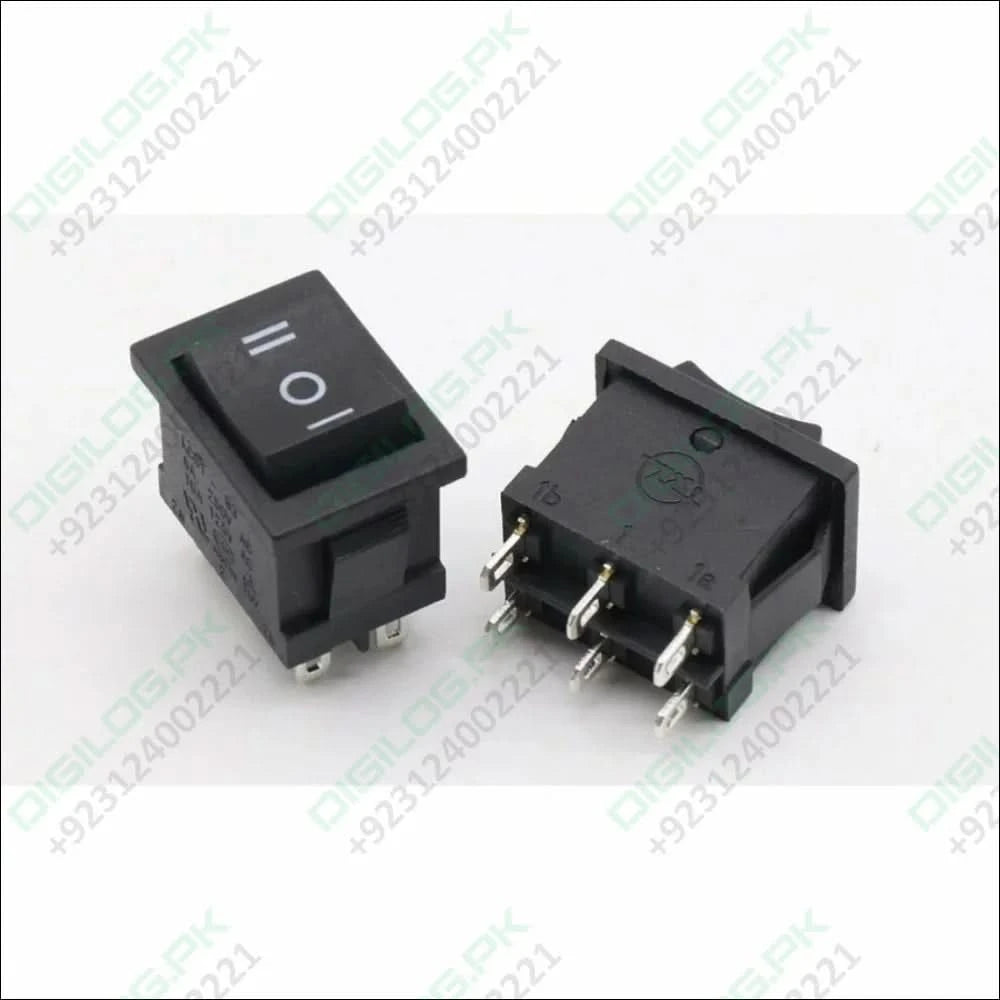

6-Terminal ON/OFF/ON Rocker Switch (KCD2-203) – DPDT 6A/250VAC Boat Type

The KCD2-203 Rocker Switch is a high-quality, durable 6-terminal switch with a 3-position ON/OFF/ON configuration, ideal for controlling dual-speed motors, forward/reverse operations, or other multi-mode functions. This DPDT (Double Pole Double Throw) switch is commonly used in boat electronics, machinery, appliances, and automotive applications. It features a snap-in mount and a clear I / O / II marking for easy operation.

Key Features

• Type: DPDT – Double Pole Double Throw
• Function: 3-position ON/OFF/ON

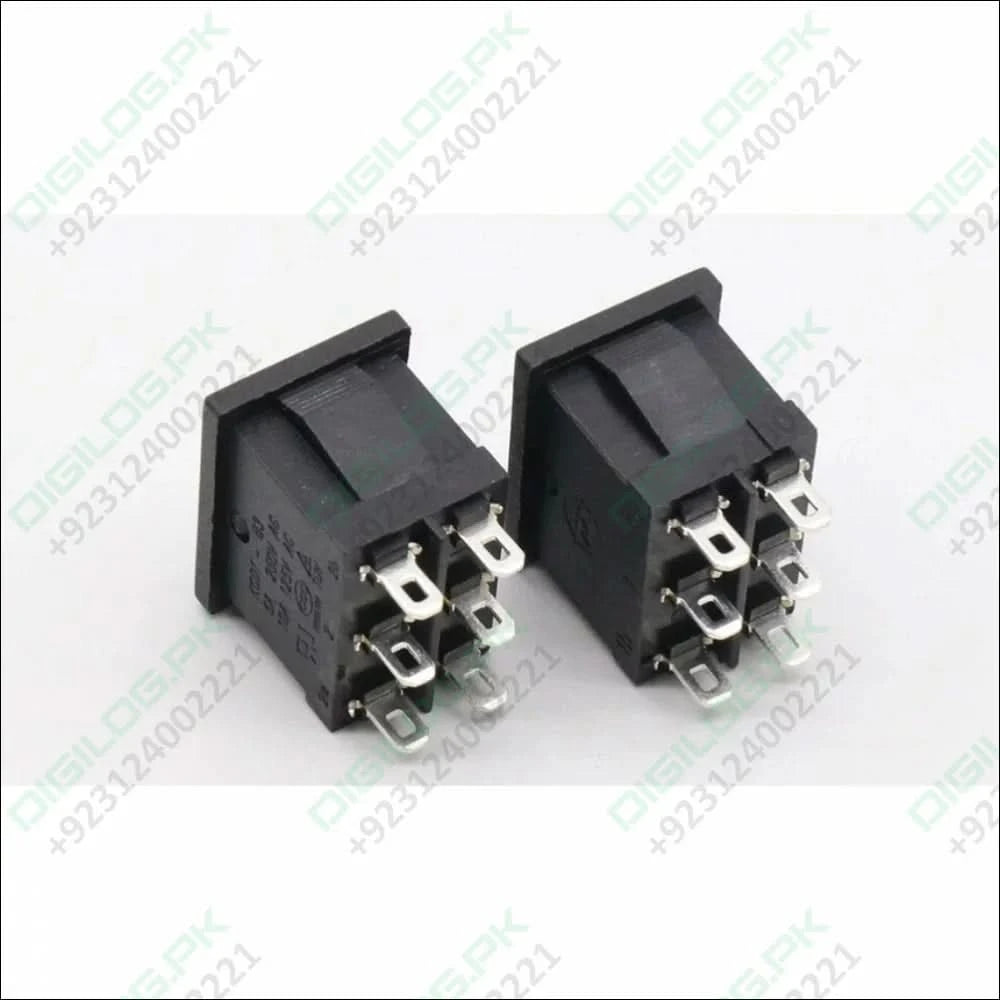

• Terminals: 6-pin configuration
• Voltage Rating: 250V AC at 6A, 125V AC at 10A
• Material: High-quality plastic and metal components
• Color: Grey

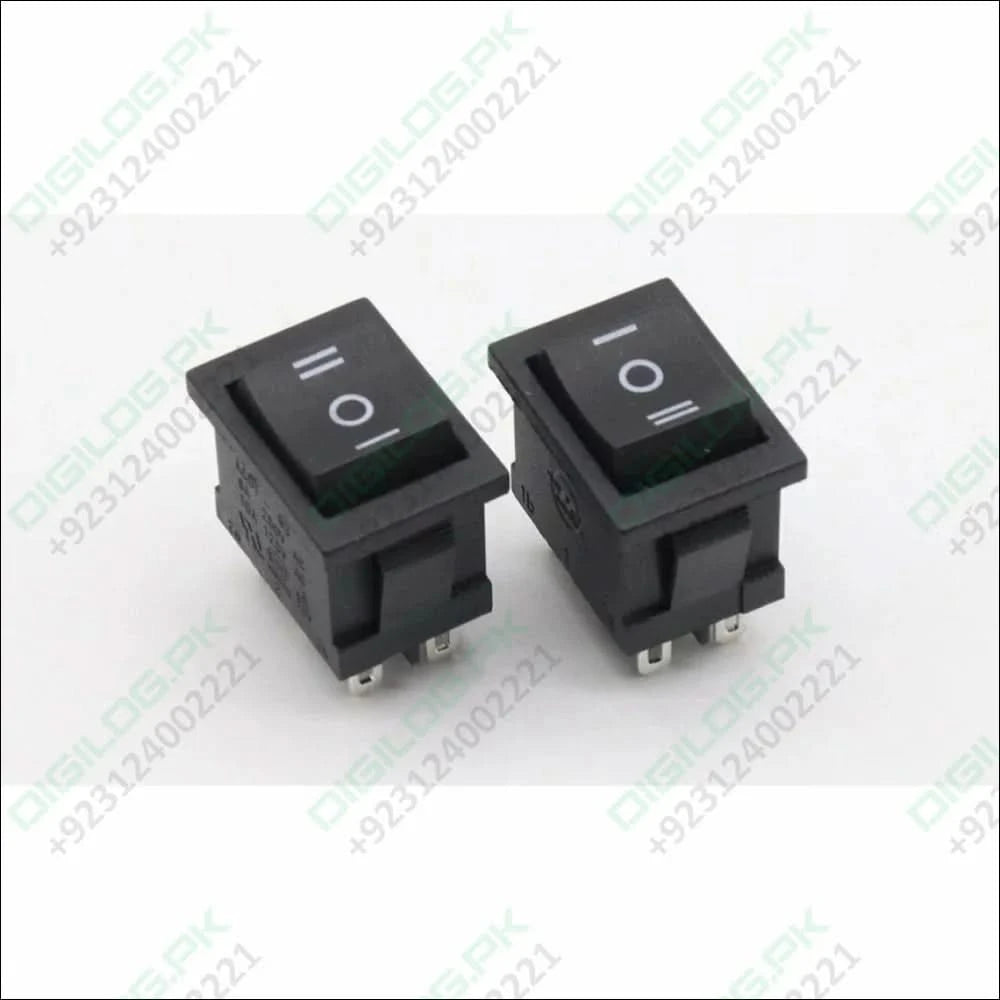

• Markings: I / O / II on rocker for precise indication

Dimensions

• Overall Size: 21 x 15 x 25 mm (L x W x T)
• Mounting Hole Size: 18 x 13 x 20 mm (L x W x T)

Applications

• Boats and marine electronics
• DIY electrical projects
• Industrial machinery control
• Electric scooters and vehicle dashboards
• AC power management systems

FAQs

Q: Can this switch be used for reversing motor polarity?

Yes, the DPDT configuration is ideal for reversing DC motor polarity or toggling between two power sources.

Q: Is this switch waterproof?

No, this model is not waterproof. It is intended for indoor or protected enclosures unless sealed.

Q: How do I wire the 6 terminals?

Each pair of terminals corresponds to a pole. You can wire two inputs and two outputs to switch between two circuits.

Package Includes

• 1 x KCD2-203 Rocker Switch
