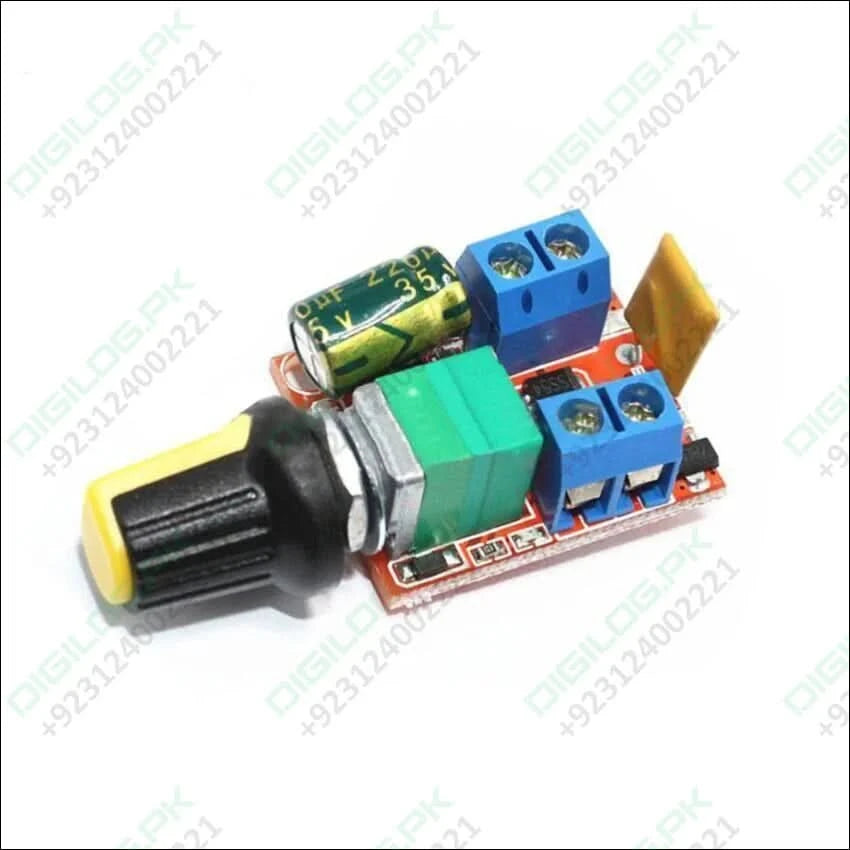

ZS-X4A 5A PWM DC Motor Speed Controller: Compact and Powerful

Upgrade your DC motor control with our versatile ZS-X4A 5A PWM DC Motor Speed Controller. This mini-sized governor features a wide voltage range (3-35V), high current capacity (5A), and a self-recovery fuse. Perfect for controlling DC motors and dimming LEDs, this compact device offers exceptional performance and reliability.

Features of ZS-X4A 5A PWM DC Motor Speed Controller Module Light Dimmer LED Dimmer lighting dimmer:

• ZS-X4A 5A PWM DC Motor Speed Controller: Advanced Protection and Flexibility

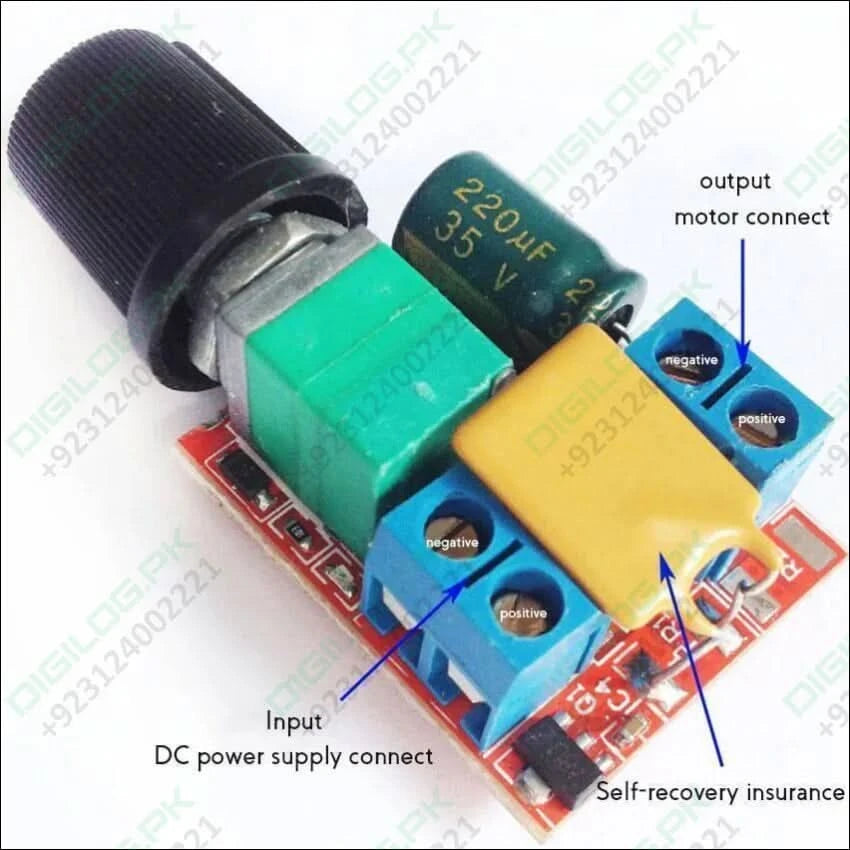

  Enhance your DC motor control with our powerful ZS-X4A 5A PWM DC Motor Speed Controller. Featuring a built-in high-voltage, high-current self-recovery fuse, this controller automatically disconnects the current during short circuits and restores power after a brief cooling period. Enjoy the convenience of virtually eliminating the need for fuse replacement.

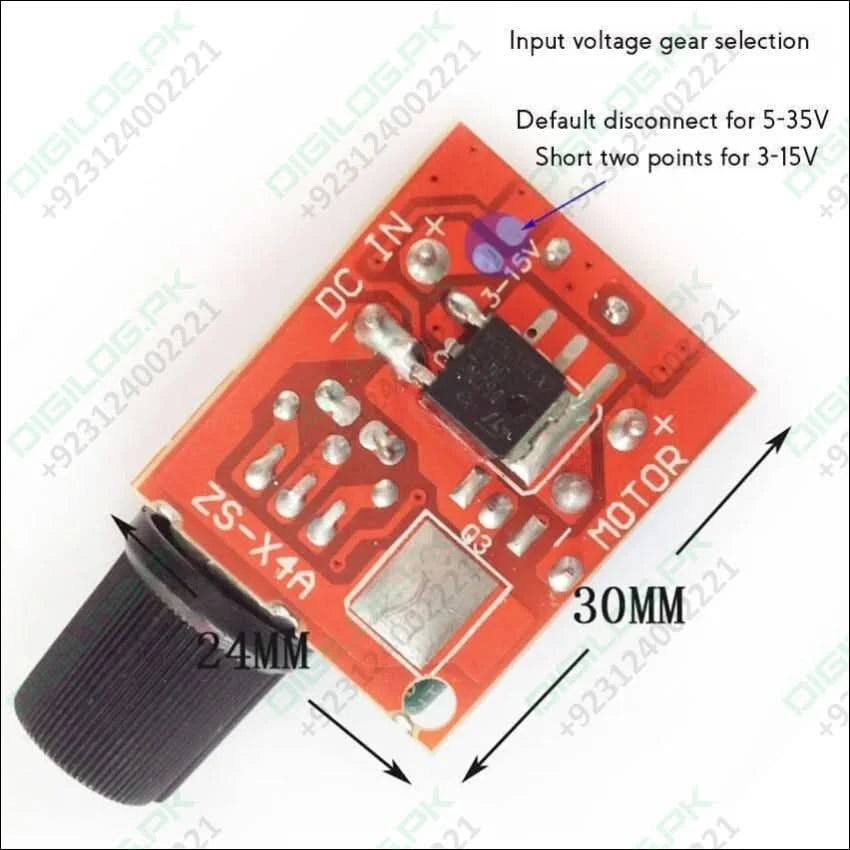

  Choose between two input voltage ranges: 5-35V (default) or 3-15V (short-circuit point connected). Easily switch between voltage ranges to suit your specific needs.

Specifications of ZS-X4A 5A PWM DC Motor Speed Controller Module Light Dimmer LED Dimmer lighting dimmer:

1. Working voltage: DC3V-35V
2. Control power: 90W (maximum)
3. Quiescent current: 0.015A (standby state)
4. PWM duty cycle: 1%-100%
5. PWM frequency: 10khz
6. Model: ZS-X4A
7. Shell size: 30MMx width 24MM (without handle) total height 15MM

Package Includes :

• 1 x Mini DC Motor PWM Governor Speed Controller
