Specification

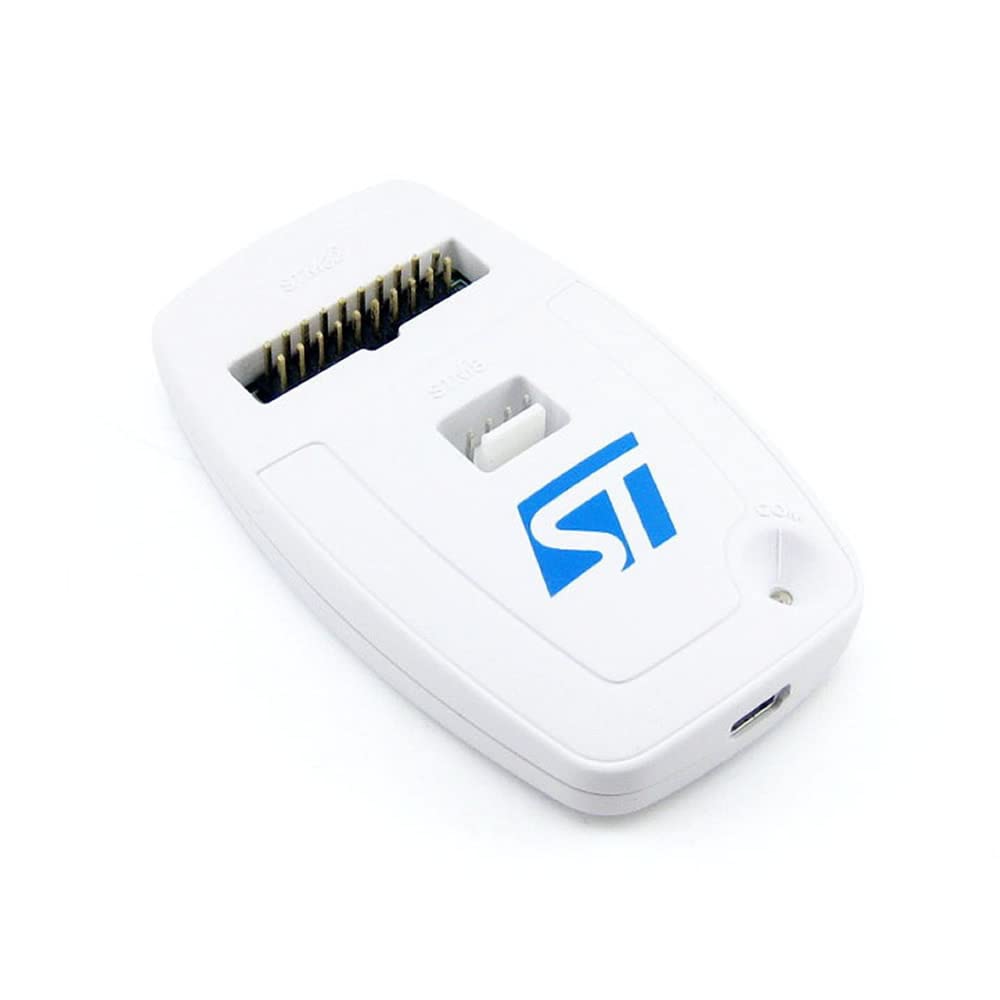

Original ST/linkV2 Debugger Programmer
- Original ST/linkV2 Debugger programmer for the STM8 and STM32 microcontroller families
- The single wire interface module (SWIM) and JTAG/serial wire debugging (SWD) interfaces are used to communicate with any STM8 or STM32 microcontroller located on an application board
- STM8 applications use the USB full-speed interface to communicate with the ST Visual Develop (STVD) or ST Visual Program (STVP) software.
- STM32 applications use the USB full-speed interface to communicate integrated development environments.
- 5 V power supplied by a USB connector

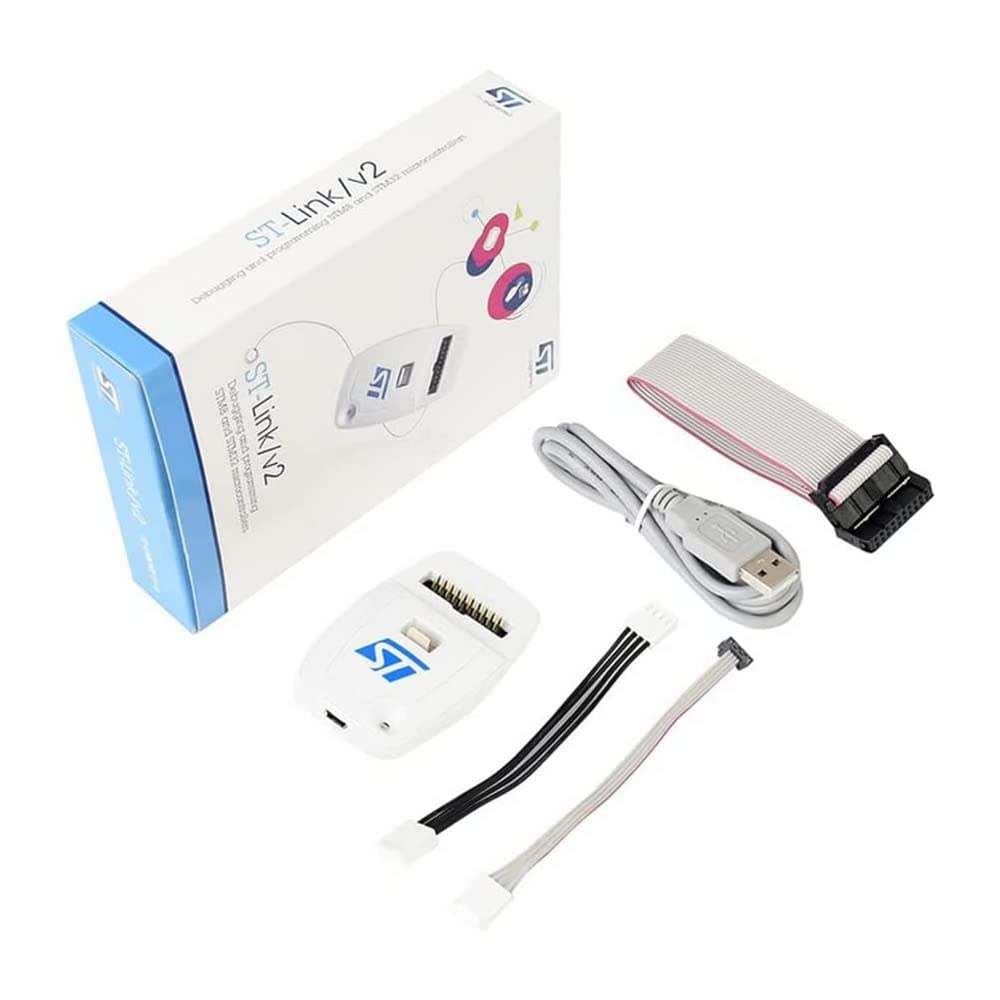

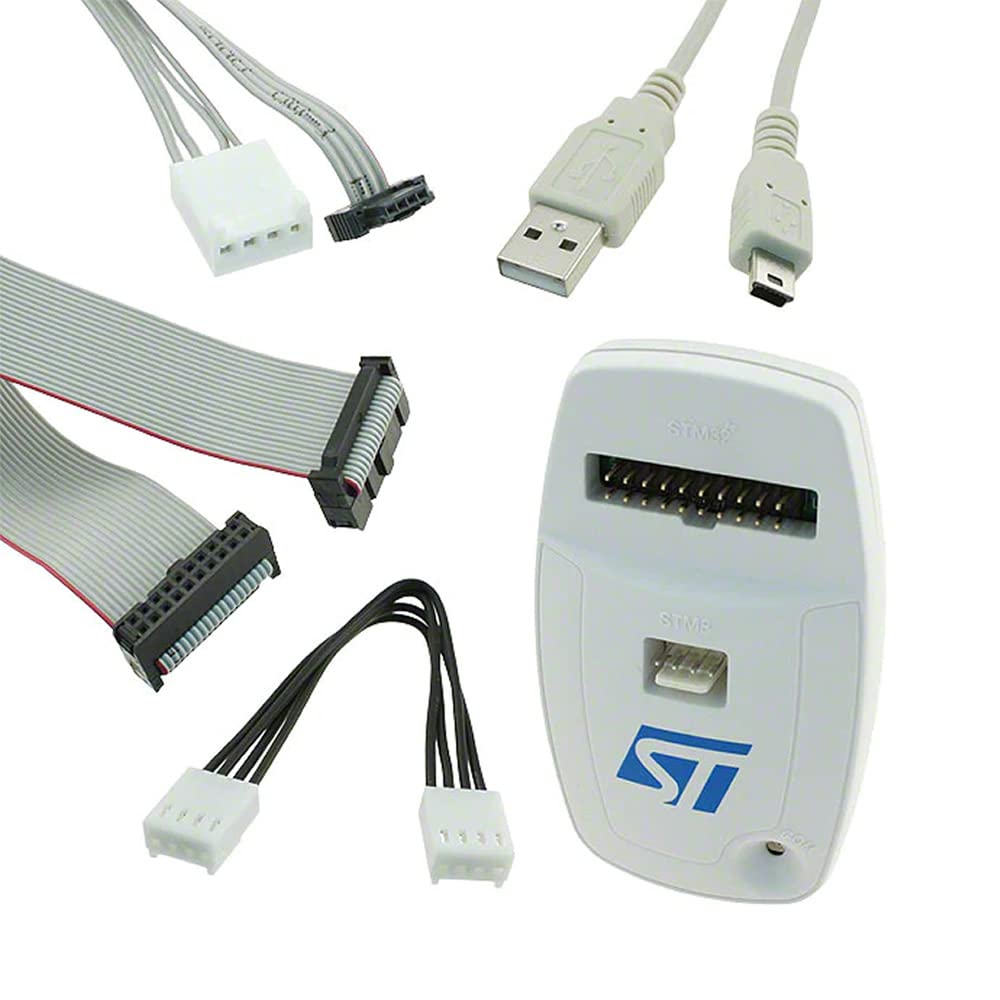

- Package Contains
- ST-LINK/V2 × 1
- USB type A to Mini-B cable × 1

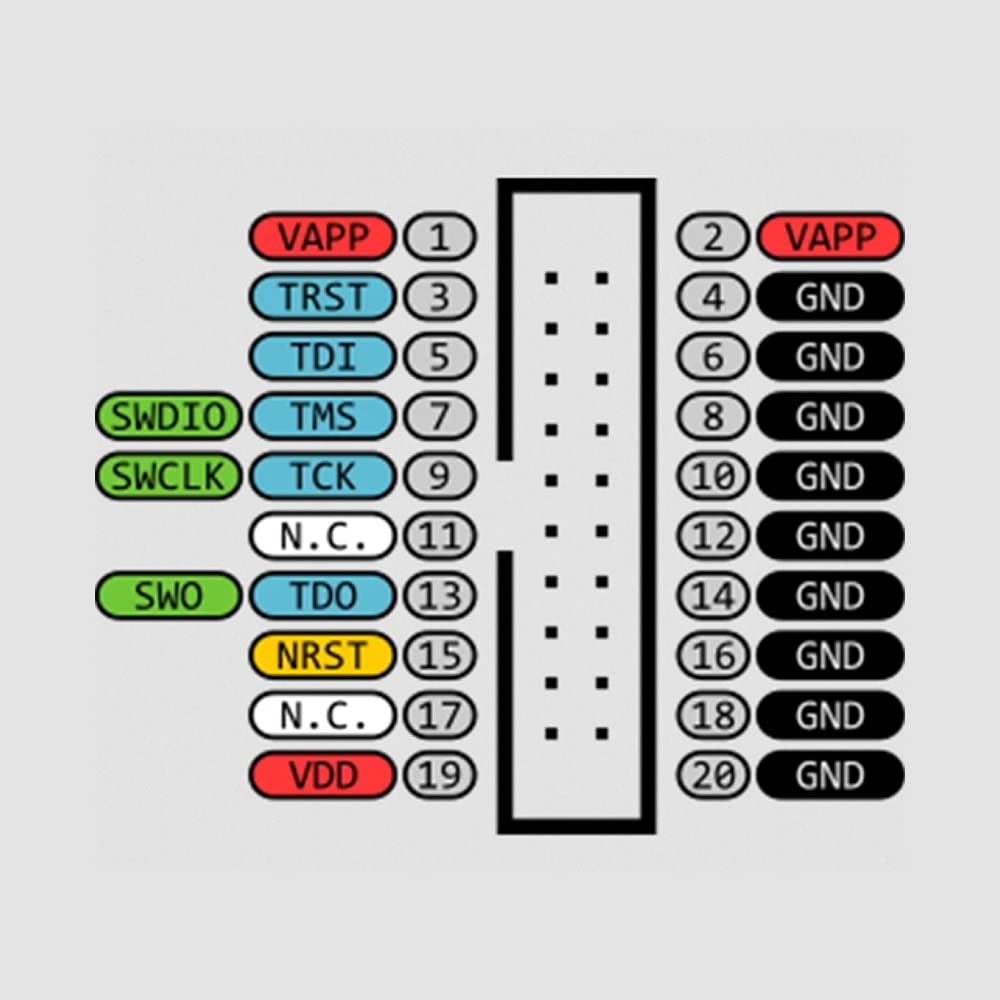

- 20-pin JTAG/SWD flat ribbon × 1
- 4-pin SWIM cable × 1
- 4-pin SWIM custom connector cable × 1
Original ST/linkV2 Debugger Programmer
ST-LINK / V2 is an online simulation, and download STM8 and STM32 development tool!
Basic Properties
· ST-LINK / V2 is ST STMicroelectronics evaluation, development STM8 and STM32 family MCU series designed to set online download for the integration of simulation and development tools.
· STM8 family via SWIM interface with the ST-LINK / V2 connection;
STM32 family through the JTAG / SWD interface with the ST-LINK / V2 connections.
· ST-LINK / V2 and PC via high speed USB2.0 connection.
Supported Software
· Direct support ST official IDE (Integrated Development Environment software) ST Visual Develop (STVD) and burning software ST Visual Program (STVP).
· Support ATOLLIC, IAR and Keil, TASKING integrated development environment such as the STM32.
Supported Devices
· Supports all interfaces with SWIM STM8 MCU
· Supports all with JTAG / SWD interface STM32 MCU
Supports the following models: (The following information corresponds to ST Visual Programmer 3.2.3 version
