Specifications and Features:

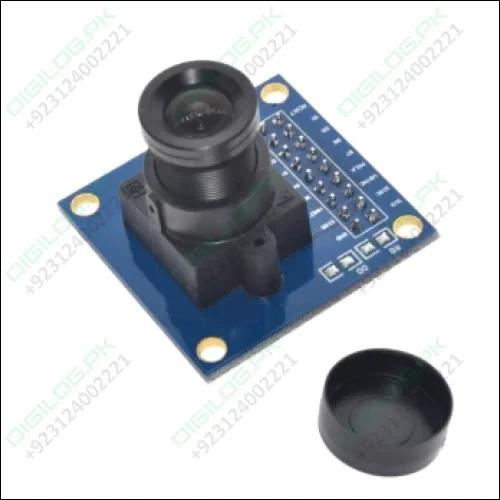

  1. MODEL: OV7670 640X480 VGA CMOS CAMERA
  2. Operating Power: 60mW/15fpsVGAYUV;
  3. Sleeping Mode: <20 uA;
  4. Lens Size: 1/6″;
  5. Max. Frame Rate: 30fps VGA;
  6. Sensitivity: 1.3V / (Lux-sec);
  7. DynamicRange: 52 dB;
  8. Electronic Exposure: 1 to 510 row;
  9. Pixel Coverage: 3.6um x 3.6um;
  10. Duck Current: 12 mV/s at 6’C
  11. PCB COLOUR: Blue
  12. Support VGA, CIF and from CIF to 40 x 30 format;
  13. Vario Pixel method for sub-sampling; Auto Image Control: AEC, AGC, AWB, ABF, ABLC;
  14. Image Quality Control: Color saturation, hue, gamma, sharpness, and anti-blooming;
  15. ISP includes noise reduction and defect correction; Support image scaling; Lens shading correction;
  16. Flicker 50/60Hz auto detection;
  17. Color saturation level auto adjust;
  18. Edge enhancement level auto adjust;
  19. De-noise level auto adjust
  20. High sensitivity for low light applications
  21. Low voltage suitable for embedded applications
  22. Standard sccb interface, compatible with i2c interface

Package includes:

1x Arduino Camera OV7670
