Latching Capacitive Touch Switch has a Built-in anti-jamming algorithm that has the good anti-interference performance. Because Capacitive touch on/off switch very is easy to use, stylish, and low-cost advantages.Capacitive Touch Key Module has touch-sensitive, no lag, time delay, flash, and other adverse reactions.HTTM Touch Button sensing part can be placed into any insulation layer (usually a glass or plastic material), it is easy to make and surroundings have sealed the keyboard, to play the role of moistureproof and waterproof. The panel design follows one's inclinations, arbitrary button size, shape, design, characters, trademarks, such as the perspective window arbitrary collocation, make product integral feeling is stronger LED Touch Sensor is Compared with physical keys, touch keys are less likely to damage. In the application of high capacity portable media players and mobile handsets and the other high visibility of the products, the capacitive touch button has been widely adopted

Features Of Automation Capacitance Touch Switch Module:

• No mechanical components, don't wear out, an infinite life, reduce maintenance cost
• Its sensing part can be placed into any insulation layer (usually a glass or plastic material), it is easy to make and surroundings have sealed the keyboard, to play the role of moistureproof and waterproof
• The panel design follows one's inclinations, arbitrary button size, shape, design, characters, trademarks, such as the perspective window arbitrary collocation, make product integral feeling is stronger
• Compared with physical keys, touch keys are less likely to damage
• You can change on the back of the resistance, adjust the signal output is latched output or keep output (see 3.3.2 rainfall distribution on 10-12);
• + 3.3 V output signal, can be directly used to drive the relay, optical coupling, LED lights, such as the original;
• A touch-sensitive, no lag, time delay, flash, and other adverse reactions
• The built-in anti-jamming algorithm has the good anti-interference performance.

Specifications Of HTTM Series Capacitive Touch Push Button LED Sensor Module:

1. Type:  Touch On/Off Switch
2. Material: Plastic
3. Input Voltage: + 2.7 V ~ + 6 V
4. Output Signal: + 3.3 V
5. Maximum Output Current: 500mA
6. Temperature Range: - 30 ~ + 70 ‘C

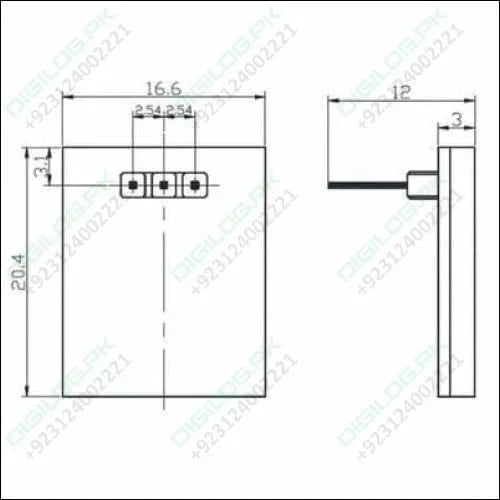

7. Dimension: 2 cm x 1.6 cm

Package Include:

• 1x HTTM Series capacitive touch button
