Specification

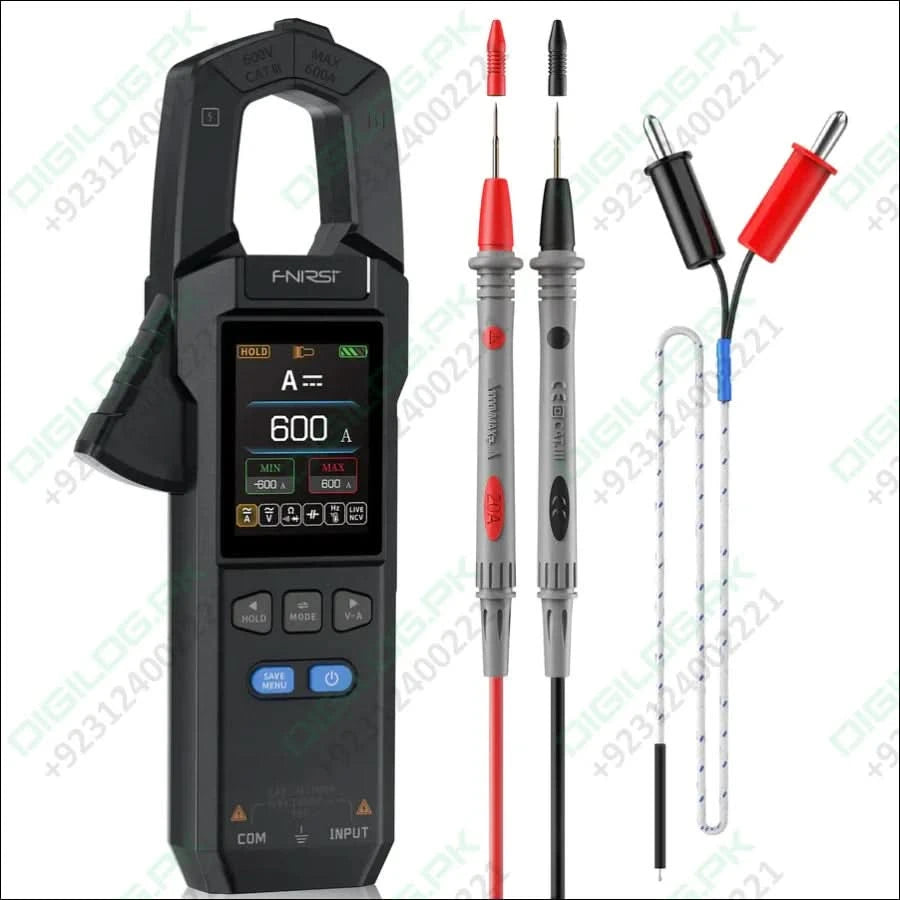

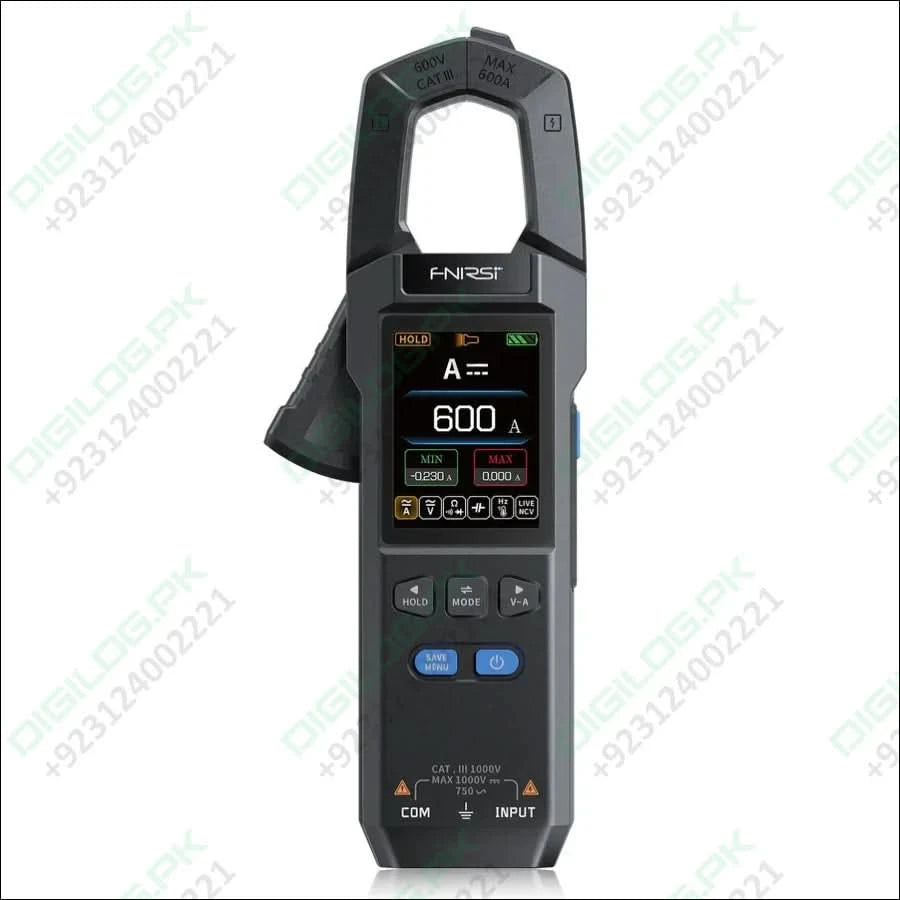

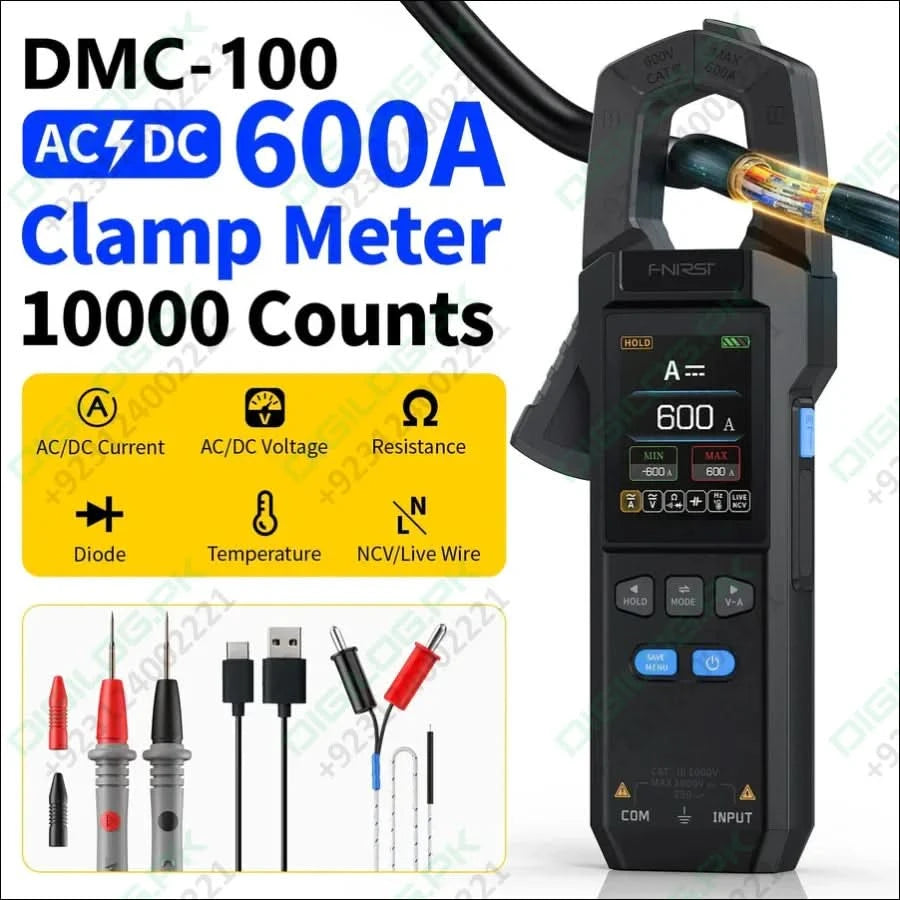

FNIRSI DMC-100 is a 10,000-count high-precision intelligent clamp meter, covering 750V voltage and 600A current ultra-wide range, whether it is engineering maintenance, laboratory research, or vehicle overhaul, home electrical diagnostics, can be easy to handle.

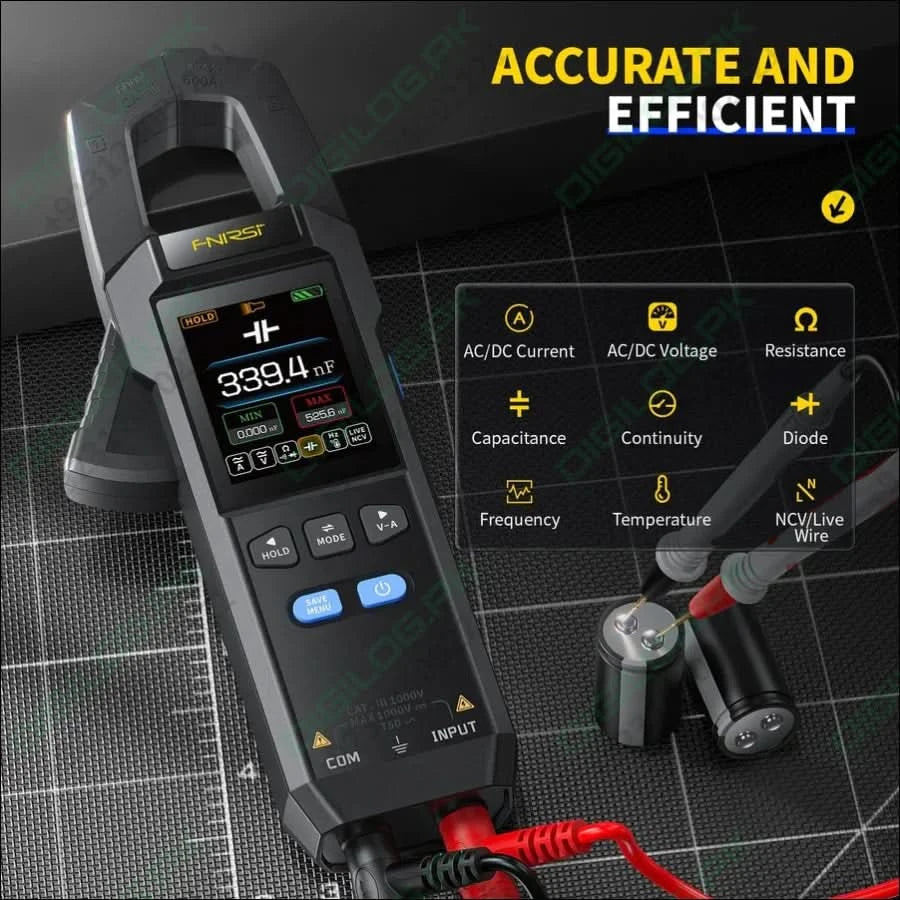

Features

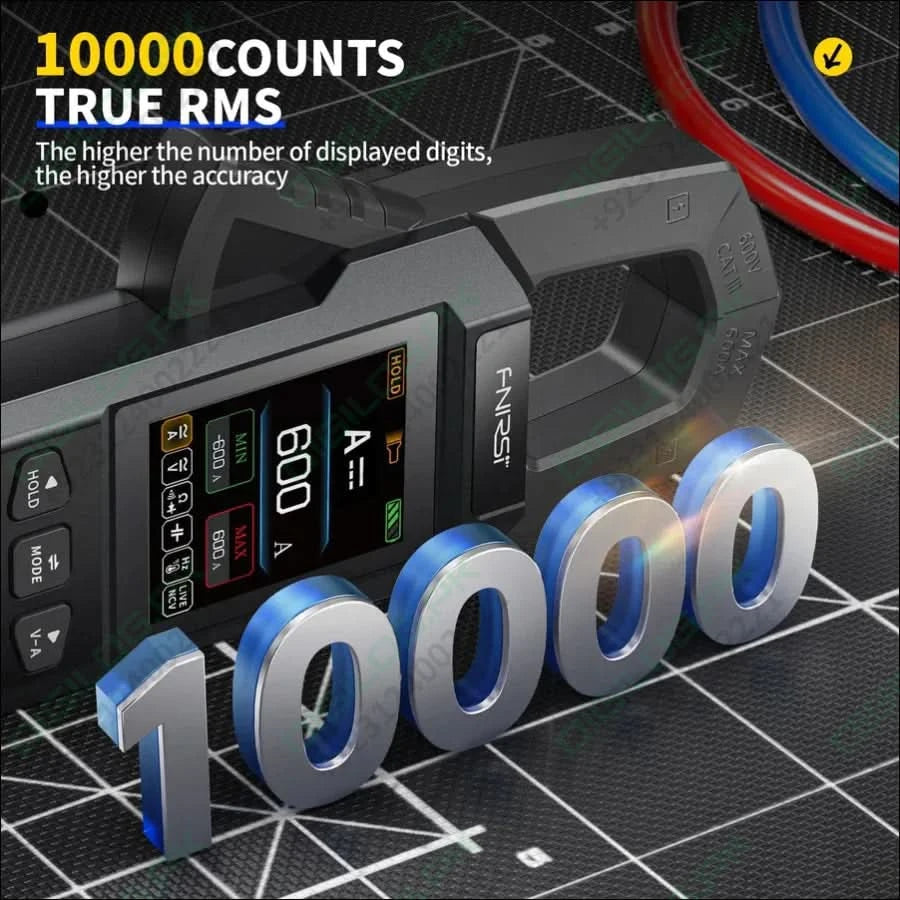

- High-Precision Measurement: 10,000-count True RMS intelligent clamp meter for accurate readings.
- Wide Measurement Range: Supports up to 750V voltage and 600A current.
- High-Quality Display: 2.0-inch 240 × 320 full-color TFT screen for clear visuals.
- Intuitive Interface: New UI with data curve display for easy reading at a glance.
- Three Measurement Modes: Switch freely between general measurement, waveform display, and power measurement modes.
- NCV Function: Non-contact voltage measurement and zero/fire line identification.
- Wide Temperature Range: Measures temperatures from -55°C to 1300°C.
- Long-Lasting Battery: Built-in 3.7V 1500mAh battery for extended usage.
- Type-C Interface: Convenient charging and data transmission via Type-C port (only for firmware transmission).
- Additional Functions: Includes a flashlight, screen backlight, and data-saving capabilities.
- Auto Power-Off: Intelligent automatic shutdown to conserve battery life.
- Temperature Unit Switching: Easily switch between temperature units (°C/°F).
- Adjustable Brightness: Screen brightness is adjustable for various environments.
- Firmware Upgradeable: Supports firmware updates to enhance functionality.
Specifications
Brand
FNIRSI
Model
DMC-100
Screen
2.0'' TFT color screen
Screen Resolution
240*320 pixels
Battery
3.7V, 1500mAh Lithium Battery
Charging Specification
USB Type-C, 5V/1A

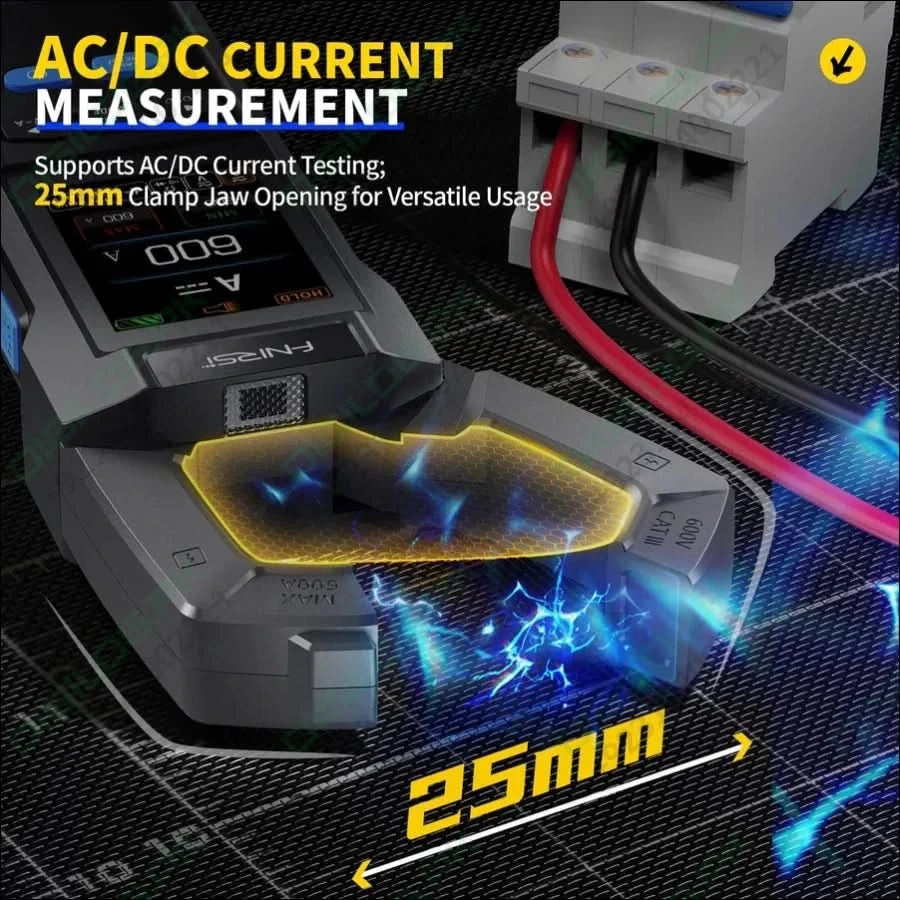

Maximum Jaws Size
25mm
Temperature Unit
°C/°F
Product Size
193x74x32mm
Product Weight
194g
DC Voltage
9.999V / 99.99V / 999.9V
AC Voltage
9.999V / 99.99V / 750.0V
DC & AC Current
99.99A / 600.0A
Resistance
99.99MΩ / 9.999MΩ / 999.9KΩ / 99.99KΩ / 9.999KΩ / 999.9Ω
Capacitance
9.999mF / 99.99mF / 999.9μF / 99.99μF / 9.999μF / 999.9nF / 99.99nF / 9.999nF
Frequency
9.999MHz / 999.9KHz / 99.99KHz / 9.999KHz / 999.99Hz / 99.99Hz / 9.999Hz
Temperature
-55~1300°C / -67~2372°F
Diode Measurement
Support
On-off Test
Support
Non-Contact Voltage Check (NCV)
Support
Zero Fire Wire Check
Support
Measuring Mode
1. General Measurement
2. Waveform Display
3. Power Measurement
2. Waveform Display
3. Power Measurement
Measurement Gear
Manual Adjustment
Torch
Support
Data Zeroing
Support
Maximum/Minimum Value
Support
Waveform Display
Support
Power Calculation
Support
Data Hold
Support
Data Storage and Viewing
Up to 30 groups of data
Language
Chinese / English
Brightness Adjustment
10-speed adjustment
Auto Power Off
OFF / 5min / 15min / 30min
Firmware Upgrade
Support
AC Current
4A / 40A / 600A
Resistance
400Ω / 4KΩ / 40KΩ / 400KΩ / 4MΩ / 40MΩ
⚠ Precautions
- Before using the product, check if the insulation near the casing and interfaces is damaged.
- Hold the probes by the protective grips.
- Do not touch any of the input ports when measuring a circuit.
- Disconnect the test probes from the circuit before changing the measurement range.
- When measuring DC voltages above 36V or AC voltages above 25V, exercise caution to avoid electric shock.
- Select the correct range for measurement to avoid damaging the instrument. The screen will display "OL" when the measurement exceeds the range.
- When the battery level is critically low, a popup will alert you. Charge the battery promptly to avoid affecting measurement performance. Do not use the device while it is charging.
