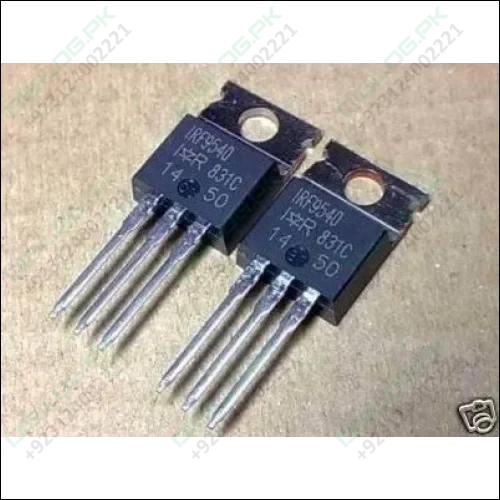

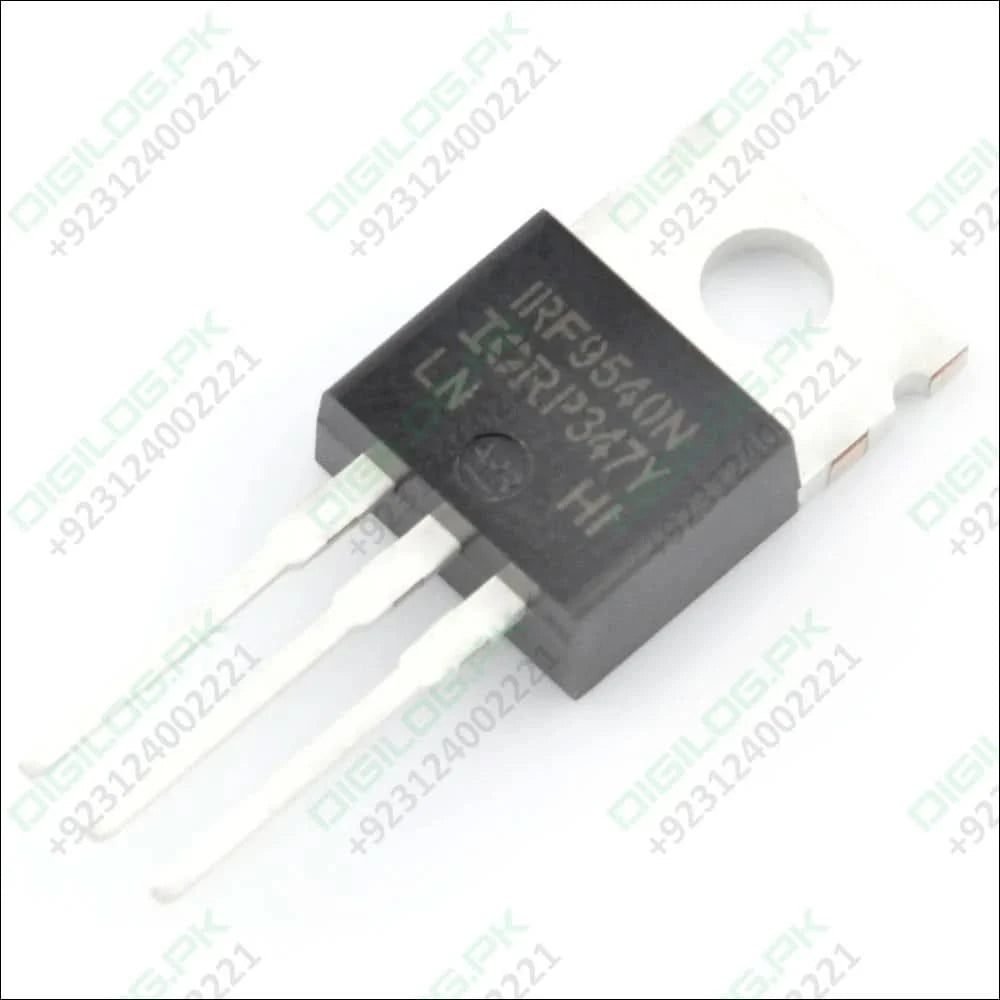

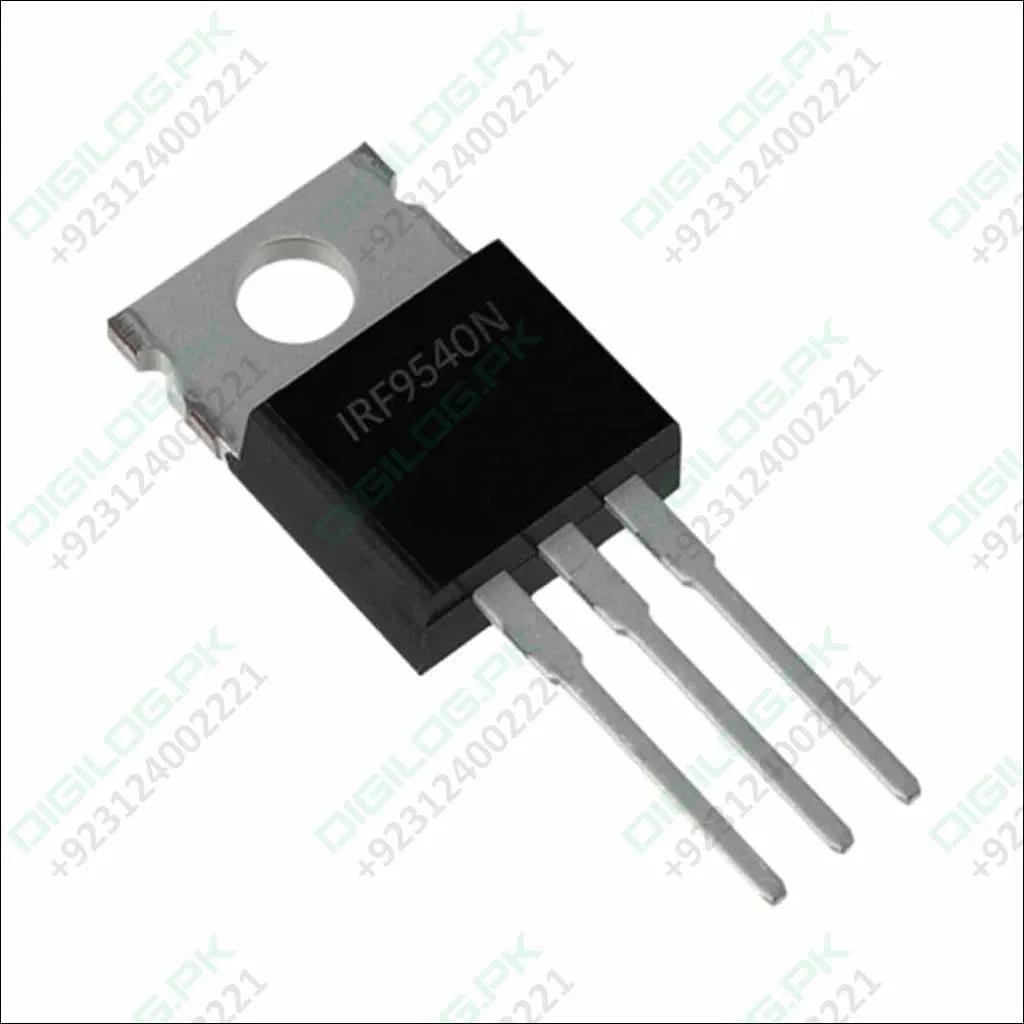

The IRF9540 P-Channel Power Mosfet is a high-performance Hexfet Power Mosfet now available in Pakistan at Digilog.pk. This advanced MOSFET technology has been especially tailored to reduce on-state resistance and provide superior switching performance and high avalanche energy strength¹².

Key Features:

• P-Channel Power Mosfet:The IRF9540 is a P-channel MOSFET that can drive maximum load current up to -19A and voltage up to -100V².
• High-Speed Switching:Designed for fast-switching applications, the IRF9540 offers high-speed switching².
• Low Turn-On Resistance:The IRF9540 is designed to have low on-state resistance².
• Repetitive Avalanche Rated:The IRF9540 is repetitive avalanche rated².
• Ease of Paralleling:The IRF9540 offers ease of paralleling².

Technical Specifications:

• Drain-to-source voltage VDS: -100 V²
• Maximum Continuous drain current ID: -19 A²
• Maximum Pulse drain current: -72 A²
• Maximum Power dissipation PD: 150 W²
• Gate-to-source voltage VGS: ±20 V²
• Peak diode recovery dv/dt: -5.5 V/ns²
• Total gate charge QG: 61 nC²
• On-state resistance RDS: 0.20 Ω²
• Operating temperature range: -55 to +175 ˚C²

Feature

• Advanced Process Technology
• Dynamic dv/dt Rating
• 175°C Operating Temperature
• Fast Switching
• P-Channel
• Fully Avalanche Rated

Specification

• Package TO-220-3
• Transistor Polarity P
• Maximum Drain Source Voltage -100 V
• Maximum Continuous Drain Current -23 A
• Maximum Gate Source Voltage ±20V
• Power Dissipation 140 W
• Number of Elements per Chip 1
• Maximum Forward Voltage -100VDC
• Output Power 140W
• Peak Non-Repetitive Surge Current -76A
• Maximum Reverse Current -25uA
• Channel Mode P-Channel Enhancement
• Peak Reverse Recovery Time 67ns
• Channel Type P
• Repetitive Peak Reverse Voltage -100VDC
• Configuration Single
• Maximum Drain Source Resistance 0.117 Ohms@10V
• Category Power Mosfet
• Maximum Forward Current -23A
• Typical Fall Time 51ns
• Typical Gate Charge @ Vgs 97nC @10V
• Typical Input Capacitance @ Vds 1300pF@25V
• Typical Rise Time 67ns
• Typical Turn-Off Delay Time 51ns
• Typical Turn-On Delay Time 15ns
• Minimum Operating Temperature -55°C
• Maximum Operating Temperature 175°C
• Mounting Through Hole
• Packaging Bulk
• Pins 3
• Family IRF9540
• Width 4.69mm
• Height 8.77mm
• Product Length 10.54mm
• Product Type Mosfet

Order your IRF9540 P-Channel Power Mosfet from Digilog.pk today and experience the power of advanced MOSFET technology.
