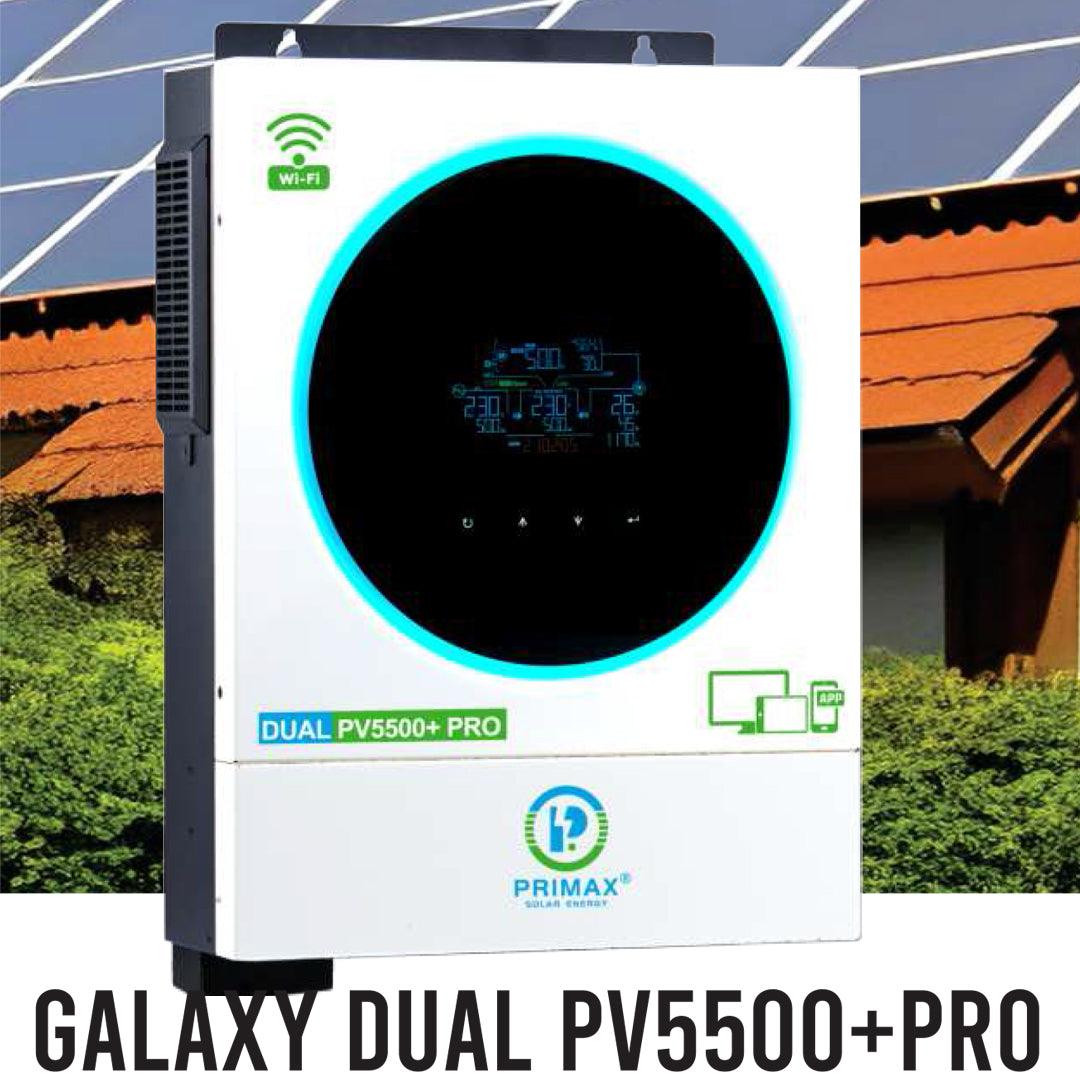

The MPPT Solar Inverter - Galaxy Dual PV5500+ Pro is a top-of-the-line choice for efficient solar energy conversion. With advanced MPPT technology, this inverter allows for maximum power output and improved system performance. Upgrade to the Galaxy Dual PV5500+ Pro for superior solar power optimization.

• Dual output for smart load management
• Maximum PV input current 27A
• Maximum PV input 5500W
• Wide PV input voltage range 60VDC~450VDC
• Touchable button with large 4.3″ colored LCD
• Customizable status LED ring with RGB lights
• Built-in Wifi for mobile monitoring (Android/iOS App available)
• Supports USB On-the-Go function
• Reserved communication port (RS485, CAN-BUS or RS232) for BMS
• Maximum charging current 120A
• Battery independent design
• Battery equalization extends life cycle
• Built-in anti-dust kit
• Data log event stored in the inverter
• • Data log event stored in the inverter

  RATED POWER	4000VA/4000W
  INPUT
  Voltage	230VAC
  Selectable Voltage Range	170¬280VAC (For Personal Computers) ; 90¬280VAC (For Home Appliances)
  Frequency Range	50Hz/60Hz(Auto Sensing)
  OUTPUT
  AC Voltage Regulation (Batt. Mode)	230VAC+-10%
  Surge Power	8000VA
  Efficiency (Peak)	90% ¬ 93%
  Transfer Time	15ms (For Personal Computers)   20ms (For Home Appliances)
  Waveform	Pure Sine Wave
  BATTERY
  Battery Voltage	24VDC
  Floating Charge Voltage	27VDC
  Overcharge Protection	33VDC
  SOLAR CHARGER & AC CHARGER
  Solar Charger Type	MPPT
  Maximum PV Array Open Circuit Voltage	500VDC
  Maximum PV Array Power	5500W
  MPPT Range@ Operating Voltage   Maximum PV Input Current	60¬450VDC   27A
  Maximum Solar Charge Current	120A
  Maximum AC Charge Current	100A
  Maximum Charge Current	120A
  PHYSICAL
  Dimension D*W*H(mm)   Net Weight (Kgs)	119 x 313.6 x 457.5   10
  Communication Interface	USB/RS232/RS485/WiFi/Dry-contact
  OPERATING ENVIRONMENT
  Humidity	5% to 95% Relative Humidity (Non-condensing)
  Operating Temperature	-10°C to 50°C
  Storage Temperature	-10°C to 60°C
