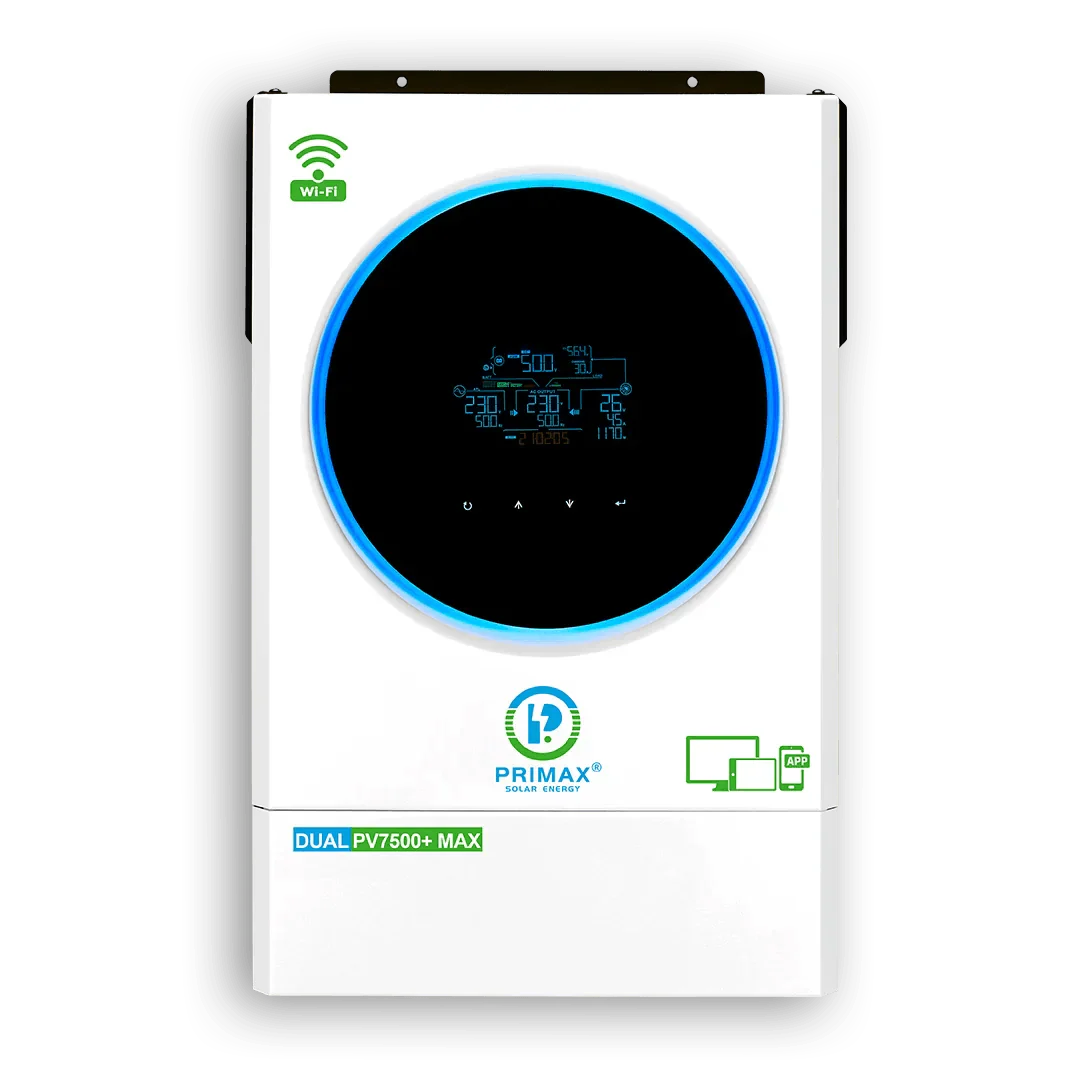

Introducing the MPPT SOLAR INVERTER – GALAXY DUAL PV7500+ MAX, the ultimate solar inverter for maximizing energy output. With dual PV input and advanced MPPT technology, you can expect up to 99.9% efficiency and seamless integration with your solar system. Take advantage of the power of the sun with this top-of-the-line inverter.
- Feed-in to the grid with storage backup
- Dual outputs for smart load management
- Maximum PV input current 27A
- Maximum PV input 7500W
- Customizable status LED ring with RGB lights
- Touchable button with 4.3″ colored LCD
- Built-in Wi-Fi for mobile monitoring (App is available)
- Supports USB On-the-Go function
- Reserved communication port for BMS
- Maximum charging current 120A
- Maximum AC output 6000W
- Parallel operation up to 9 units
- Built-in anti-dust kit
| PHASE | 1- Phase In / 1- Phase Out |
| RATED OUTPUT POWER | 6000W |
| MAXIMUM PV INPUT POWER | 7500W |
| MAXIMUM CHARGING POWER | 6000W |
| GRID-TIE OPERATION | |
| PV INPUT (DC) | |
| Nominal DC Voltage / Maximum DC Voltage | 360VDC / 500VDC |
| Start-up Voltage / Initial Feeding Voltage | 120VDC / 150VDC |
| MPPT Voltage Range | 120 VDC ~ 430 VDC |
| Number of MPP Trackers / Maximum Input Current | 1 / 27A |
| GRID OUTPUT (AC) | |
| Nominal Output Voltage | 220/230/240 VAC |
| Output Voltage Range | 18 ~ 264.4 VAC or 195.5 ~ 253 VAC (Selectable) |
| Nominal Output Current | 26A |
| Power factor | > 0.99 |
| EFFICIENCY | |
| Maximum Conversion Efficiency (DC/AC) | 96% |
| OFF-GRID OPERATION | |
| AC INPUT | |
| AC Start-up Voltage / Auto Restart Voltage | 120 ~ 140 VAC / 180 VAC |
| Acceptable Input Voltage Range | 90 ~ 280 VAC or 170 ~ 280 VAC |
| Maximum AC Input Current | 40A |
| PV INPUT (DC) | |
| Maximum DC Voltage | 500 VDC |
| MPP Voltage Range | 120 VDC ~ 430 VDC |
| Number of MPP Trackers / Maximum Input Current | 1/27A |
| BATTERY MODE OUTPUT (AC) | |
| Nominal Output Voltage | 220/230/240 VAC |
| Output Waveform | Pure Sinewave |
| Effieciency (DC to AC) | 93% |
| HYBRID OPERATION | |
| PV INPUT (DC) | |
| Nominal DC Voltage / Maximum DC Voltage | 360 VDC / 500 VDC |
| Start-up Voltage / Initial Feeding Voltage | 120 VDC / 150 VDC |
| MPP Voltage Range | 120 VDC ~ 430 VDC |
| Number of MPP Trackers / Maximum Input Current | 1/27A |
| GRID OUTPUT (AC) | |
| Nominal Output Voltage | 220/230/240 VAC |
| Output Voltage Range | 184 ~ 264.5 VAC or 195.5 ~ 253 VAC (Selectable) |
| Nominal Output Current | 26A |
| AC INPUT | |
| AC Start-up Voltage / Auto Restart Voltage | 120 ~ 140 VAC / 180 VAC |
| Acceptable Input Voltage Range | 90 ~ 280 VAC or 170 ~ 280 VAC |
| Maximum AC Input Current | 40A |
| BATTERY MODE OUTPUT (AC) | |
| Nominal Output Voltage | 220/230/240 VAC |
| Effieciency (DC to AC) | 93% |
| BATTERY & CHARGER | |
| Nominal DC Voltage | 48 VDC |
| Maximum Solar Charge Current | 120A |
| Maximum AC Charge Current | 120A |
| Maximum Charge Current | 120A |
| PHYSICAL | |
| Dimension D*W*H(mm) | 140x295x468 |
| Net Weight (Kgs) | 12 |
| INTERFACE | |
| Parallel Function | Yes, 9 Units |
| Communication Port | USB/RS232/RS485/WiFi/Dry-contact |
| ENVIRONMENT | |
| Humidity | 0% to 90% Relative Humidity (Non-Condensing) |
| Operating Temperature | -10¬50C |
| Storage Temperature | -15¬60C |
