The OneTronix Micro Trax MPPT Solar Charge Controller Hybrid 60A, model mX6215, is an advanced photovoltaic (PV) charge controller designed to optimize solar energy utilization. This controller employs Maximum Power Point Tracking (MPPT) technology to efficiently capture and deliver the highest possible current from your PV array, ensuring maximum charging for your batteries. During the charging process, the mX6215 intelligently regulates battery voltage and output current based on the energy available from the solar panels and the state of charge of the batteries. This ensures safe and efficient operation, prolonging battery life and enhancing overall system performance. With its robust design and user-friendly interface, the OneTronix mX6215 is perfect for residential, commercial, and off-grid solar applications, providing reliable energy management and helping you make the most of your solar investment. Upgrade your solar setup with this reliable charge controller for optimal energy efficiency and battery care.

MPPT Solar Charge Controller Hybrid:

The mX Series Solar Charge Controller is especially targeted towards a wide
range of consumer applications. It is designed for negative grounded
systems. The mX Series has a higher operating input voltage than
conventional charge controllers, which enables the application to use thinner
wires from the PV array to the charge controller, which in-turn saves wiring
costs. It comes in standard wall mount housing.
The mX6215 Charge Controller incorporates a dynamic Maximum Power
Point Tracking (MPPT) algorithm called microTraxMPPT designed to maximize
energy harvest from the PV array. The microTraxMPPT constantly adjusts the
operating power points of the array to ensure it stays on the maximum
power point. It does not stop energy harvest to sweep the array like some
other competing products. This feature is beneficial in all sunlight conditions,
especially in areas with fast moving cloud cover and quickly changing solar
conditions

The mX6215 is the only one of its kind in the market with the unique Hybrid
Switching function built into the Solar Charge Controller. This system comes
with two options i.e. It save the battery going into the deep discharge by
having option for DC load switch OR It intelligently switches off the utility
mains input of the existing UPS to optimize its usage and reduce billing

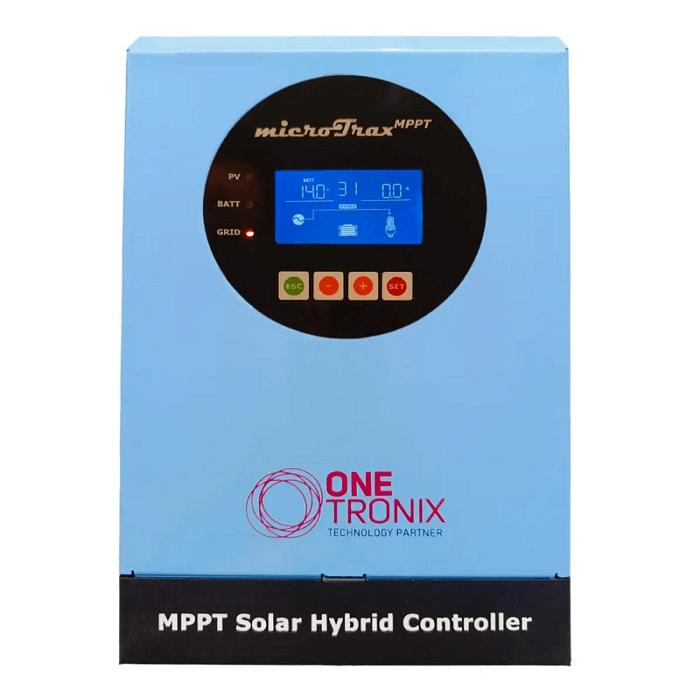

costs. With a complete LCD and LED interface the mX6215 is ideal for home
users that have an already installed UPS backup system.

Product features
• Intelligent Maximum Power Point Tracking Technology (MPPT) increases
efficiency 25%~30%
• Compatible for PV systems in 12V , 24V or 48V
• Built-in Hybrid Switching function
• Three-stage charging optimizes battery performance
• Maximum efficiency up to 98%
• Maximum charging current up to 60A / 80A / 100A
• Full output current up to 70°C without thermal de-rating
• Graphic Display and 4 buttons for configuration and system monitoring
• Input over-voltage and under-voltage protection, output over-current
protection, and back-feed
• Reverse current protection (warning and fault messages appear on LCD
when unit shuts down as a protective measure)
• Support wide range of lead-acid batteries including wet , AGM and gel
batteries
• Over-temperature protection and power de-rating when output power
and/or ambient temperature are high
• One-year warranty
