Specification

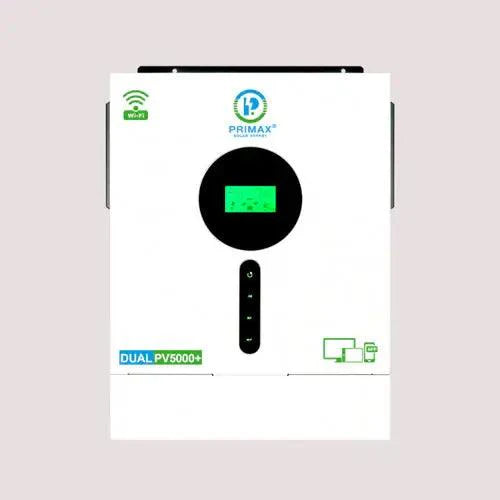

PRIMAX GALAXY PV5000+ Hybrid Solar Inverter 3.6KW with 5000W MPPT Solar Charge Controller
- Dual output for smart load management
- Maximum PV input current 27A
- Wide PV input voltage range 60VDC~450VDC
- Built-in Wifi for mobile monitoring (Android/iOS App available)
- Reserved communication port (RS485, CAN-BUS or RS232) for BMS
- Maximum charging current 120A
- Battery independent design
- Feed-in to the grid with storage backup
- Battery equalization function to optimize battery performance and extend life cycle
- Built-in anti-dust kit
- Maximum AC Output 3600W
Download PDF
Detail Spacification Of PRIMAX GALAXY PV5000+ Hybrid Solar Inverter
| RATED POWER | 3600VA/3600W |
| INPUT | |
| Voltage | 230VAC |
| Selectable Voltage Range | 170¬280VAC (For Personal Computers) ; 90¬280VAC (For Home Appliances) |
| Frequency Range | 50Hz/60Hz(Auto Sensing) |
| OUTPUT | |
| AC Voltage Regulation (Batt. Mode) | 230VAC+-10% |
| Surge Power | 7200VA |
| Efficiency (Peak) | 93% |
| Transfer Time | 10ms (For Personal Computers)
20ms (For Home Appliances) |
| Waveform | Pure Sine Wave |
| BATTERY | |
| Battery Voltage | 24VDC |
| Floating Charge Voltage | 27VDC |
| Overcharge Protection | 33VDC |
| SOLAR CHARGER & AC CHARGER | |
| Solar Charger Type | MPPT |
| Maximum PV Array Open Circuit Voltage | 500VDC |
| Maximum PV Array Power | 5000W |
| MPPT Range@ Operating Voltage
Maximum PV Input Current |
90¬450V DC
27A |
| Maximum Solar Charge Current | 120A |
| Maximum AC Charge Current | 100A |
| Maximum Charge Current | 120A |
| PHYSICAL | |
| Dimension D*W*H(mm)
Net Weight (Kgs) |
107*322.6*420.3
9.5 |
| Communication Interface | USB/RS232 |
| OPERATING ENVIRONMENT | |
| Humidity | 5% to 95% Relative Humidity (Non-Condensing) |
| Operating Temperature | -10¬50C |
| Storage Temperature | -15¬60C |
