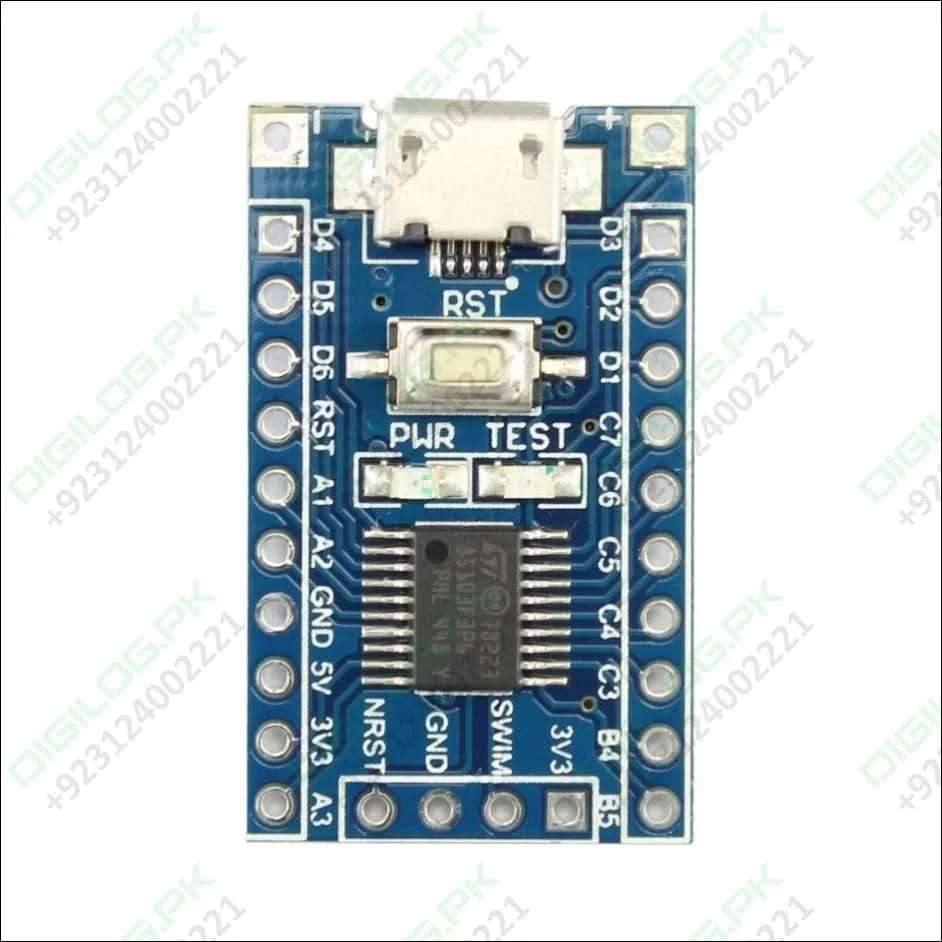

The STM8S003F3P6 STM8  Development Board is a budget-friendly platform for exploring the STM8 microcontroller. With its compact design, easy-to-use features, and compatibility with various power sources, this board is ideal for beginners and experienced developers alike.

Key Features:

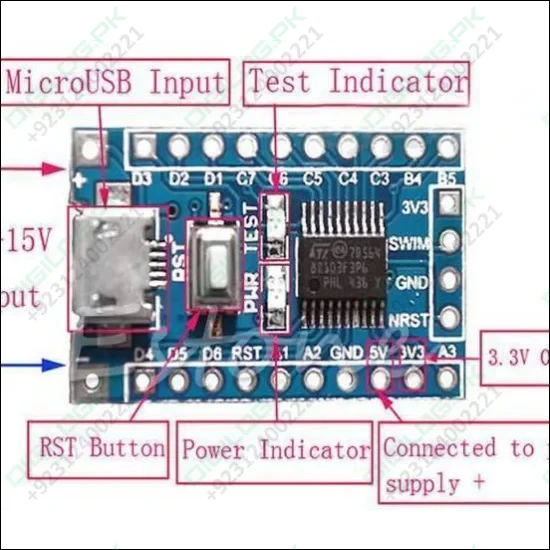

• On-board STM8S003F3P6 Microcontroller: STM8S003F3P6 Board Start experimenting with the STM8 architecture immediately.
• SWIM Connector: Conveniently program your microcontroller using the SWIM interface.
• On-board Reset Switch: Easily reset the microcontroller for debugging or testing.
• External Crystal Oscillator Soldering Place: Customize the clock frequency for your projects.

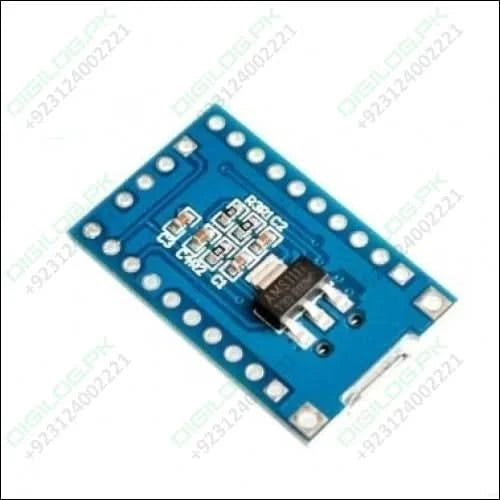

• AMS1117-3.3 Voltage Regulator: Provides a stable 3.3V power supply.
• Mini USB Connector: Power the board conveniently using a USB cable.
• Compact Size: STM8S003F3P6 Board Ideal for portable projects and limited workspace.

Upgrade your microcontroller development with the STM8S003F3P6 STM8 Development Board and experience the power and versatility of the STM8 platform.

QUICK LINKS:

1. STM8S003F3 Datasheet
2. STM8S103F3P6 Schematic Diagram
3. STM8S103F3 Datasheet
4. CD00265449

Video Tutorial

Tutorial Link:
