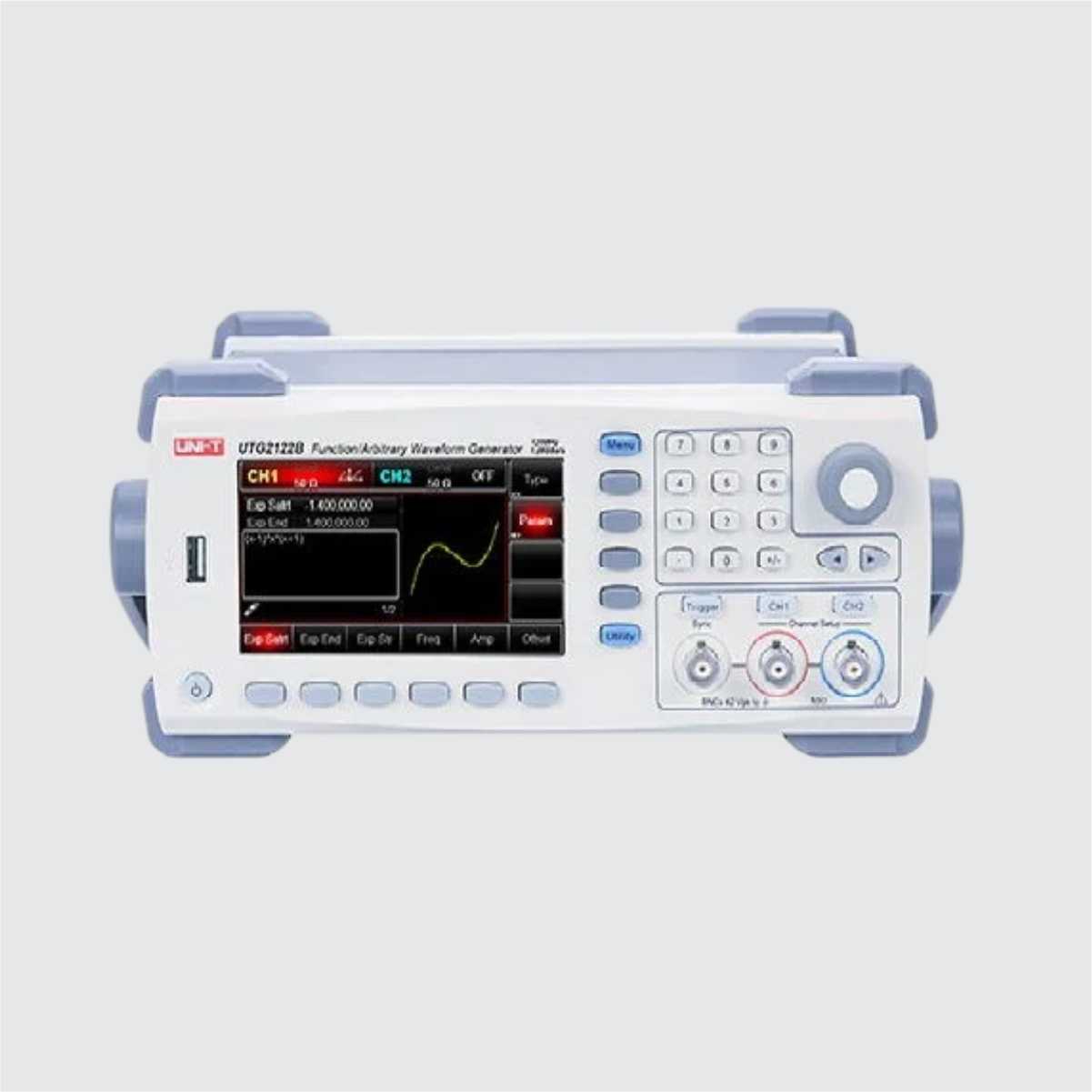

UNI T General Function Generator DDS UTG2122B

UNI-T UTG2122B - 2-channel arbitrary waveform generator DDS, with a sinusoidal signal generation band of 120 MHz, the sampling rate of a digital-to-analogue converter: 320 MB / s, and memory capacity: up to 16M points, manufactured by UNI-T. The arbitrary signal generator can produce high precision, stable, pure, and low distortion signals; provide high-frequency square waves with a quick rise and fall edges. Users can improve their working efficiency by using the multifunctional instrument of easy operated interface, competitive specifications, and humanized graphical display.

Features Of 2 channel Arbitrary Waveform Function generator UTG2122B:

1μHz full-band resolution
5MHz~30MHz pulse waveform, adjustable rise/fall time
16-bit vertical resolution
Two equivalent-performance channels
Max arbitrary waveform length of 8k/16M points; 48/161
Non-volatile waveforms storage

Specifications Of UNI-T UTG2122B General Oscilloscope Signal Generator:

Power: 100~240VAC, 50Hz/60Hz
Display: 4.3-inch TFT LCD, WVGA (480 x 272)
Colour: White and grey
Dimension: 265mm x 110mm x 320mm
Channel: 2
Bandwidth: 60Mhz
Sampling rate: 320MS/s
Vertical Resolution: 16 bit
Waveform: Sine, square, pulse, ramp, noise, DC, arbitrary (20 sets inside )
Sweep modes: Logarithmic, linear

Package Includes:

1x signal generator
1x USB interface cable
1x power cord
1x BNC cable with alligator clips
