● True RMS
● Two-color mold injection
● Display 6000
● CAT III 600V/CAT IV 300V
● 600V DC/AC voltage measurement
● Large resistance measurement: 60MΩ
Your Cart
Specification

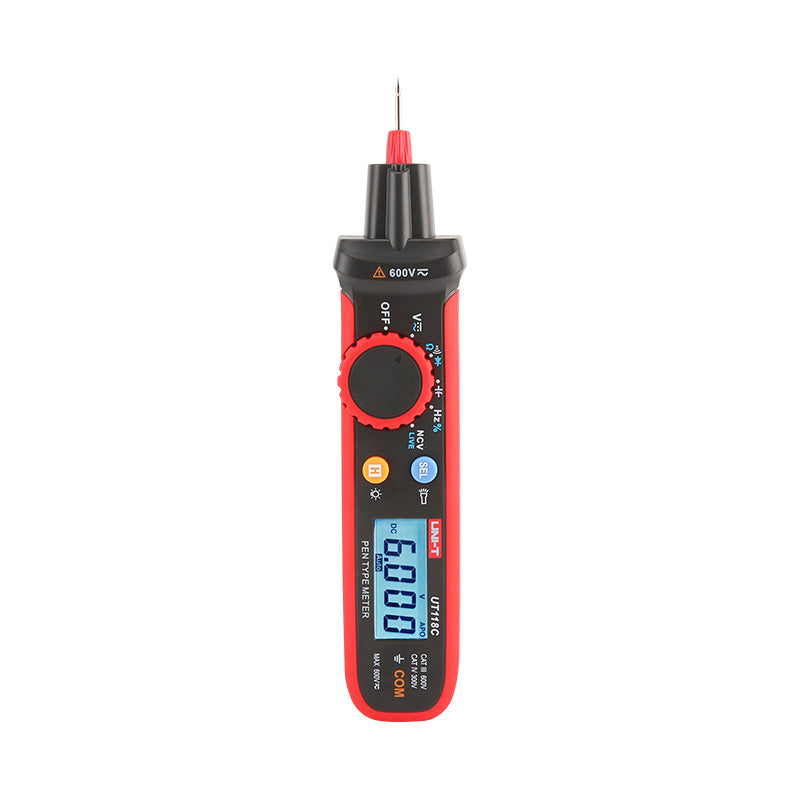

UNI-T UT118C Pen-Type Digital Multimeter | hallroad.org.pk in Lahore
The UT118C Pen-type meter is a lightweight and durable device that boasts True RMS measurement capability, allowing for accurate readings. With the ability to measure voltage up to AC/DC 600, a wide resistance and capacitance range, and gold-plated special-tip test leads for versatility and safe operation (CAT III 600V & CAT IV 300V), it is an excellent and cost-effective choice for residential appliance repair and DIY enthusiasts.
Features of UT118C Pen-type meter:
● Large capacitance measurement: 60mF
● Diode/on/off/resistor automatic identification
● Two-step adjustment of nib length
● Gold-plated special-tip test leads, hardened phosphor bronze
● CE (EMC, LVD), ROHS
Specifications of UT118C Pen-type meter:
| Technical Specifications | ||
| DC voltage (V) | 6.000V/60.00V/600.0V | ±（1％＋3） |
| AC voltage (V) | 6.000V/60.00V/600.0V | ±（1％＋4） |
| Resistance | 600.0Ω/6.000kΩ/60.00kΩ/600.0kΩ | ±(1%+3) |
| 6.000MΩ | ±(1.5%+5) | |
| 60.00MΩ | ±(2.5%+5) | |
| Capacitance | 600.0nF/6.000uF/60.00uF/600.0uF | ±（3.5%+8) |
| 6.000mF | ±（5.0%+9) | |
| 60.00mF | ±（10.0%+9) | |
| Frequency | 99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz | ±(0.01%+5) |
| Features | ||
| Display count | 6000 | |
| Duty cycle | 0.1% to 99.9% | |
| NCV/LIVE test | √ | |
| True RMS | √ | |
| Diode | √ | |
| Continuity | √ | |
| Resistance | √ | |
| Auto range | √ | |
| Screen | HTN LCD 36*15mm | |
| Auto power off | √ | |
| Flash light | √ | |
| Indicator | Dual color | |
| Battery | AAA*1 | |
| Category rating | CAT IV 300V; CAT III 600V | |
| Certificates | CE/cETLus/ROHS | |
| General Characteristics | ||
| Power supply | AAA*1 | |
| Product dimension | 182.5mm x 38.0mm x 38.5mm | |
| Product color | Gray + Red | |
| Accessories | User manual 1pcs, 1.5V AAA battery 1pcs | |
