● 1000A AC current measurement
1000V AC/DC voltage measurement
40MΩ resistance measurement
40mF capacitance measurement
10MHz frequency measurement
Your Cart
Specification

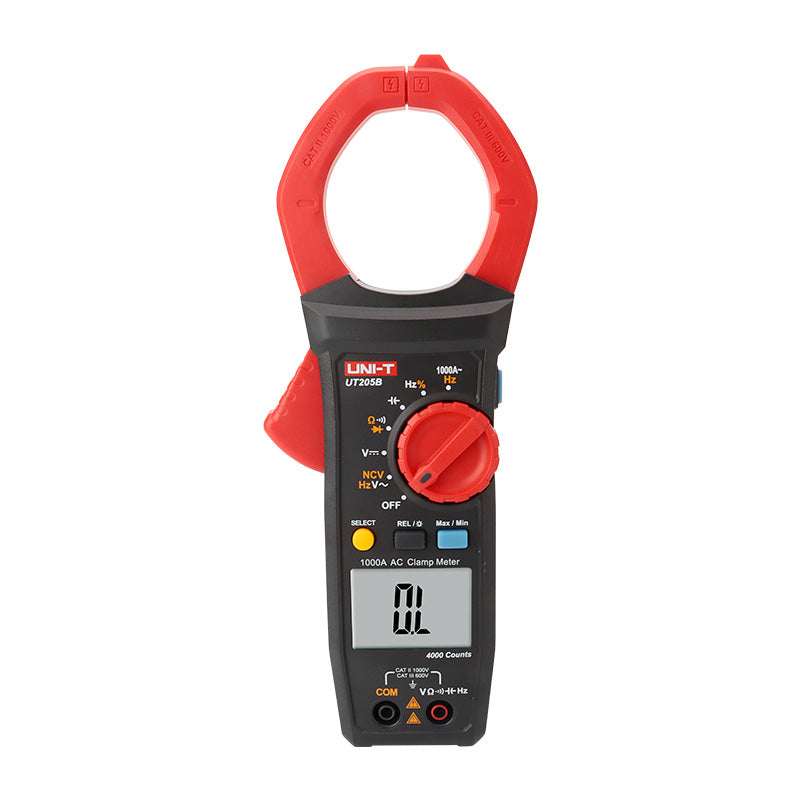

UT205B 1000A AC Clamp Meter | hallroad.org.pk in Lahore
UT205B 1000A AC clamp meter has a large size of Jaw (up to 60mm) and can suit more application scenarios. The lightweight and slim design, and the backlight/flashlight functions are good for dark environment operation; The meter also supports duty cycle, NCV, MAX/MIN, etc. functions, it is a reliable and portable electronic tool.
Features:
● Duty cycle/NCV test/flashlight
Diode/Continuity Test
Relative value/Max & Min value
55mm Clamp jaw size, opening 60mm
Pliers head uses an air core coil, which is light-weight and easy to carry
Specifications:
| Specifications | Range | Accuracy |
| AC current (A) | 1000A | ±（1.5%+5) |
| ACA frequency (Hz) | 40Hz~1kHz | ±（1.0%+5) |
| AC voltage (V) | 1000V | ±（1.0%+2) |
| ACV frequency (Hz) | 10Hz~10kHz | ±（1.0%+5) |
| DC voltage (V) | 1000V | ±（0.8%+2) |
| Resistance (Ω) | 40.00MΩ | ±(2.5%+5) |
| Capacitance (F) | 40mF | ±(10%) |
| Frequency (Hz) | 10Hz ~ 10MHz | ±（0.1%+4) |
| Duty cycle | 0.1%~99.9% | ±（3.0%+5) |
| Features | ||
| Jaw opening | 60mm | |
| Jaw size | 55mm | |
| NCV | √ | |
| Continuity | √ | |
| Diode test | √ | |
| LCD screen | 42*30mm | |
| Display count | 4099 | |
| Low battery indication | √ | |
| Data hold | √ | |
| Auto power off | Around 15 minutes | |
| Max/Min | √ | |
| Flashlight | √ | |
| Backlight | √ | |
| Relative mode | √ | |
| Overvoltage category | CAT II 1000V/CAT III 600V | |
