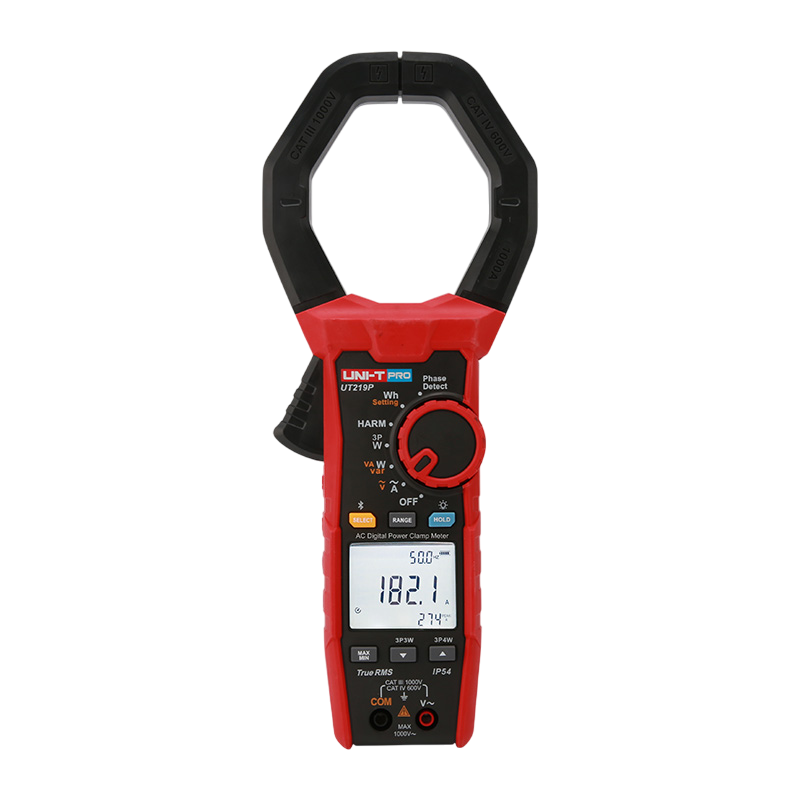

UT219P AC Digital Power Clamp Meter Price in Lahore | hallroad.org.pk

UT219P is an intelligent, handheld, and stable power and harmonics clamp meter, with the functions of a digital ammeter and power meter. It can measure harmonics, 3-phase unbalanced voltage, AC voltage, AC current, power, power factor, and more. Digital Power Clamp Meter

It is widely used in photovoltaic power stations, motor manufacturing, and power/harmonic measurement of electrical equipment and distribution cabinets in residential enterprises.

Features:

Specifications:

Specifications	Range	Accuracy
AC current (A)	1000A	±(1.5%+3)
AC voltage (V)	1000V	±(0.7%+3)
Power (single phase)	1000KW	±(1.7%+5)
Power (3-phase & 3-wires)	1732KW
Power (3-phase & 4-wires)	3000KW
Power frequency (Hz)	15Hz~1000Hz	±(0.3%+3)
Phase angle (-180°~ 179.9°)	15Hz~40Hz	±5°
	40Hz~70Hz	±3°
	70Hz~1000Hz	±5°
Power factor	-1 ~ 1	based on the Accuracy of the Phase angle
Features
Jaw opening	75mm
Phase detection	√ (80V~1000V)
	Positive and Negative
AC/DC PEAK measurement	√
Harmonic measurement	32 times
Display mode	LCD screen
	4 kinds of results at the same time
Display count	9999
Bluetooth app	√
True RMS	√
Overload indication	√
High voltage indication	√
High voltage overload warning	√
Low battery indication	√
Data hold	√
Auto power off	Around 15 minutes
Max/Min	√
Overvoltage category	CAT III 1000V/CAT IV 600V
Certificate	CE, UKCA, cETLus
