UNI-T UT343D Coating Thickness Gauge Meter in Rawalpindi

Key Feature:
  • UNI-T UT343D coating thickness gauge review,
  • How to use UNI-T UT343D thickness gauge,
  • Features of UNI-T UT343D coating meter,,
  • UNI-T UT343D coating thickness tester manual,
  • What is the UNI-T UT343D thickness gauge?,
  • Benefits of using UNI-T UT343D coating meter,
  • UNI-T UT343D gauge accuracy,
  • UNI-T UT343D calibration guide,
  • Coating thickness measurement methods,
  • UNI-T UT343D coating thickness gauge specifications,
  • How does the UNI-T UT343D work?,
  • UNI-T UT343D vs other coating thickness gauges,
  • UNI-T UT343D coating tester comparison,
  • Non-destructive testing with UNI-T UT343D,
  • Troubleshooting UNI-T UT343D coating meter,
  • UNI-T UT343D coating gauge for automotive use,
  • Applications of UNI-T UT343D thickness meter,
  • UNI-T UT343D user guide,
  • Using the UNI-T UT343D in industrial settings,
  • UNI-T UT343D features and functionality,
  • UNI-T UT343D setup instructions,
  • Advantages of UNI-T UT343D coating tester,
  • How to calibrate UNI-T UT343D meter,
  • UNI-T UT343D for paint thickness measurement,
  • Understanding coating thickness gauges like UNI-T UT343D,
UT343D Coating Thickness Gauge Paint Thickness Gauge in Rawalpindi,

UT343D Coating Thickness Gauge Paint Thickness Gauge in Rawalpindi,

UT343D

UNI-T UT343D coating thickness gauge can measure coating thickness on ferrous and non-ferrous materials. This UT-343D coating thickness meter is designed with a unique quick test feature. This car paint thickness gauge, which allows users to set thickness range and using a 3-colour LED and audio alarm to quickly determine if coating being tested falls within the preset range, greatly increasing work efficiency. UT343 digital thickness gauge meter display is auto rotatable. This CE certified best car paint thickness gauge can store up to 500 sets of data for further analysis through the PC analytical software that is included. This thickness gauge tool is widely used in manufacturing, metal processing, aerospace, marine mechanics, rail transport, scientific research, quality supervision, and other industries.

Features Of UNI-T UT343D Coating Thickness Gauge:

  • Automatic identification of iron and non-ferrous substrates
  • The sensor uses diamond clamping technology, which is accurate, wear-resistant and stable.
  • Single point and two-point calibration to ensure measurement accuracy
  • Single point, multi-point quick judgment and prompt

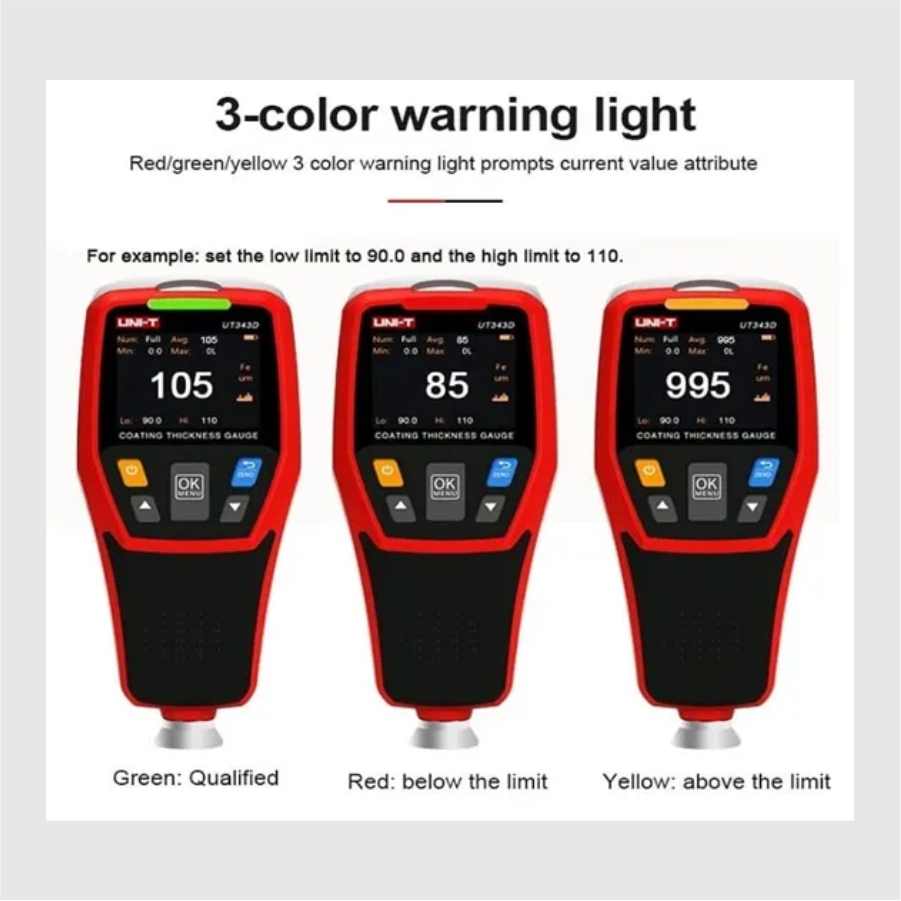

  • Red, green and yellow warning lights
  • The screen display content is automatically rotated
  • 500 sets of storage data and USB data transmission

Specifications Of UNI-T UT343D Mini Coating Thickness Gauge Iron Matrix, Non-Ferrous Matrix Tester:

Specifications Range
Measuring range 0~1250um
Accuracy ±(3%H+1)um
Resolution 0.1um (0~99.9um); 1um (100~1250um)
Measurement method Single/Continuous
Measurement mode Max/Min/Avg
Metal type Ferrous/ non-ferrous
Features
Display type 2.0-inches TFT LCD (320 x 240 pixels)
LCD brightness control
Auto rotatable screen
Unit conversion
Audio alarm
LED alarm
PC analysis software
USB communication
Quick test mode
Data storage 500 groups
Auto power off
Low battery indication
General Characterisitics
Power 1.5V AA battery (LR6) x 2
Display 48mm x 36mm
Product color Red and grey
Product net weight 175g
Product size 153.5mm x 64.5mm x 41mm
Standard accessories Micro USB interface cable, standard piece, batteries, cloth bag
Standard individual packing Gift box, English manual
Standard quantity per carton 20pcs
Standard carton measurement 355mm x 320mm x 195mm
Standard carton gross weight 7.5kg

Package Includes:

  • 1 x Coating Thickness Gauge
  • 1 x Micro USB Interface Cable
  • 1 x User's Manual
  • 1 x Carrying Bag
  • 1 x Hand Strap

Best Online Shopping website for UNI T Coating Thickness Gauge Meter Tester UT343D Digital Thickness Measuring Car Paint Gauge Material Coating Thickness Tester in cheap price in Karachi, Lahore, Islamabad, Rawalpindi, Sukkur, Peshawar, Multan, Quetta, Faisalabad and all over Pakistan.
